• Internal I/O Interface:
  • 3 x USB connectors support additional 6 USB ports
  • 1 x Floppy disk drive connector
  • 1 x IDE connector
  • 1 x COM connector
  • 7 x SATA connectors
  • 1 x CPU Fan connector
  • 2 x Chassis Fan connector
  • 1 x Power Fan connector
  • 1 x IEEE1394a connector
  • Front panel audio connector
  • 1 x Azalia Digital Header
  • 1 x S/PDIF Out Header
  • Chassis Intrusion connector
  • CD audio in
  • 24-pin ATX Power connector
  • 1 x 4-pin ATX 12V Power connector
  • System Panel

• BIOS:
  • 8 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

• Special Features:
  • ASUS AI Gear
  • ASUS AI Nap
  • ASUS Q-Fan 2
  • ASUS Noise Filter
  • ASUS Q-Connector
  • ASUS O.C. Profile
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 2

• Overclocking Features:
  • AI NOS (Non-delay Overclocking System)
  • AI Overclocking (intelligent CPU frequency tuner)
  • ASUS AI Booster utility
  • vCore: Adjustable CPU voltage at 0.00625V increment
  • vDIMM: 4-step DRAM voltage control
  • FSB tuning from 100MHz up to 650MHz at 1MHz incrementMemory tuning from 400MHz up to 1066MHzPCI Express frequency tuning from 90MHz up to 150MHz at 1MHz increment
  • ASUS C.P.R.(CPU Parameter Recall)

• Accessories:
  • UltraDMA 133/100/66 cable
  • FDD cable
  • SATA cables
  • SATA power cables
  • I/O Shield
  • User's manual
  • USB2.0 port module
  • 3 in 1 Q-connector

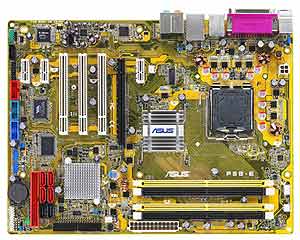

Motherboard Specifications

• Model:
  • Asus P5B-E

• Processor Support:
  • Socket 775
  • Intel ® Quad-core CPU Ready
  • Intel ® Core2 Extreme / Core2 Duo / Pentium ® Extreme / Pentium ® D / Pentium ® 4 / Celeron ® D Processors
  • Compatible with Intel ® 05B/05A/06 processors
  • Intel ® Hyper-Threading Technology ready

• Chipset:
  • Intel ® P965 / ICH8R with Intel ® Fast Memory Access Technology

• FSB:
  • 1066 / 800 / 533 MHz

• Memory:
  • 4 x DIMM, max. 8GB, DDR2 800 / 667 / 533 MHz, non-ECC, un-buffered memory
  • Dual channel memory architecture

• Expansion Slots:
  • 1 x PCI-E x16
  • 3 x PCI-E x1
  • 3 x PCI 2.2

• On-Board Audio:
  • ADI ® 8-channel High Definition Audio CODEC
    - Support Jack-Sensing, Enumeration, Multi-streaming and Jack-Retasking
    - Coaxial / Optical S/PDIF out ports at back I/O
    - ASUS Noise Filter

• On-Board LAN:
  • Attansic ® L1 PCI-E Gigabit LAN controller

• Storage:
  • Southbridge
    - 6 x SATA 3.0 Gb/s ports
    - Intel Matrix Storage Technology supports RAID 0, 1, 5 and 10.
  • JMicron ® JMB363 PATA and SATA controller
    - 1 x UltraDMA 133/100/66 for up to 2 PATA devices
    - 1 x Internal SATA 3.0 Gb/s port
    - 1 x External SATA 3.0 Gb/s port (SATA On-the-Go)
    - Support SATA RAID 0, 1 and JBOD (by 1x External SATA & 1x Internal SATA)

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x Parallel port
  • 1 x S/PDIF Out (Coaxial + Optical)
  • 1 x External SATA
  • 1 x IEEE1394a
  • 1 x RJ45 port
  • 4 x USB 2.0/1.1
  • 8-Channel Audio I/O

• Form Factor:
  • ATX Form Factor
  • 12"x 9.6"
  • 30.5cm x 24.5cm
