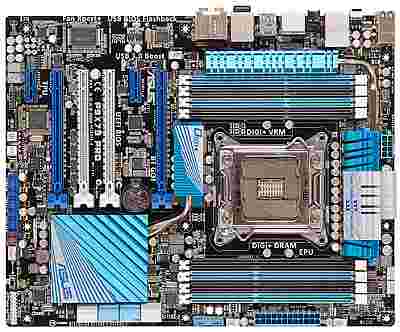

Asus P9X79 PRO Motherboard

• Storage:
  • Intel ® X79 chipset :
    2 x SATA 6Gb/s port(s), white
    4 x SATA 3Gb/s port(s), blue
    Support Raid 0, 1, 5, 10
    Marvell ® PCIe 9128 controller :
    2 x SATA 6Gb/s port(s), white
    ASMedia ® ASM1061 controller :
    2 x Power eSATA 6Gb/s port(s), green

• Rear Panel I/O Ports:

  • 1 x Bluetooth module(s)
  • 2 x Power eSATA 6Gb/s
  • 1 x LAN (RJ45) port(s)
  • 4 x USB 3.0
  • 6 x USB 2.0 (one port can be switched to USB BIOS Flashback)
  • 1 x Optical S/PDIF out
  • 6 x Audio jack(s)
  • 1 x USB BIOS Flashback Button(s)

• Internal I/O Interface:

  • 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
  • 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
  • 4 x SATA 6Gb/s connector(s)
  • 4 x SATA 3Gb/s connector(s)
  • 1 x CPU Fan connector(s) (4 -pin)
  • 4 x Chassis Fan connector(s) (4 -pin)
  • 1 x Optional Fan connector(s) (4 -pin)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s) (Q-Connector)
  • 1 x MemOK! button(s)
  • 1 x TPU switch(es)
  • 1 x EPU switch(es)
  • 1 x Power-on button(s)
  • 1 x Reset button(s)
  • 1 x Clear CMOS jumper(s)

• BIOS:
  • 64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

• Manageability:
  • WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

• Accessories:

  • User's manual
  • I/O Shield
  • 2 x SATA 3Gb/s cable(s)
  • 4 x SATA 6Gb/s cable(s)
  • 1 x 3-Way SLI bridge(s)
  • 1 x SLI bridge(s)
  • 1 x Q-connector(s) (2 in 1)

Motherboard Specifications

• Model:
  • Asus P9X79 PRO Motherboard


• Processor Support:
  • Intel ® Socket 2011 for 2nd Generation Core i7 Processors
    Supports Intel ® Turbo Boost Technology 2

• Chipset:
  • Intel ® X79

• Memory:
  • 8 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2133(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
    Quad Channel Memory Architecture
    Supports Intel ® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.

• Expansion Slots:

  • 3 x PCIe 3.0/2.0 x16 (dual x16 or x16, x8, x8) *1
  • 1 x PCIe 3.0/2.0 x16 (x8 mode) *1
  • 2 x PCIe 2.0 x1

• On-Board Audio:
  • Realtek ® ALC898 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    Audio Feature :
    - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
    - Blu-ray audio layer Content Protection
    - DTS Ultra PC II
    - DTS Connect
    - Optical S/PDIF out port(s) at back panel

• On-Board LAN:
  • Intel ® 82579V, 1 x Gigabit LAN Controller(s)

• Special Features:
  • ASUS Dual Intelligent Processors 3 with New DIGI+ Power Control :
    ASUS TPU :
    - Auto Tuning
    - TurboV
    - TPU switch
    ASUS EPU :
    - EPU
    - EPU switch
    ASUS Digital Power Design :
    - Industry leading Digital 8 + 2 Phase CPU Power Design
    - Industry leading Digital 2 + 2 Phase DRAM Power Design
    - CPU Power Utility
    - DRAM Power Utility
    ASUS BT GO! :
    - Folder Sync
    - BT Transfer
    - Shot & Send
    - BT to Net
    - Music Player
    - Personal Manager
    ASUS BT Turbo Remote :
    - Exclusive Smartphone Interface supporting iPhone, Android, Windows Mobile, and Symbian systems
    ASUS Exclusive Features :
    - MemOK!
    - AI Suite II
    - Ai Charger
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - ASUS SSD Caching
    - USB 3.0 Boost
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-pipe solution
    - ASUS Fan Xpert+
    ASUS EZ DIY :
    - USB BIOS Flashback
    - ASUS Q-Shield
    - ASUS O.C. Profile
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    - ASUS MyLogo 2
    - Multi-language BIOS
    ASUS Q-Design :
    - ASUS Q-Code
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector

• Form Factor:
  • ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
