• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x D-Sub port
  • 1 x Serial port
  • 1 set 5.1 channel Audio Jack (3 jacks)
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• On-Board LAN:
  • Realtek RTL8201CL - 10/100 PHY


• Power Connector :
  • 1 x 24pin main power
  • 1x 4pin CPU power

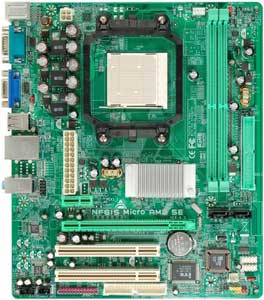

Biostar NF61SM-AM2-SE Motherboard

• Model:
  • Biostar NF61SM-AM2-SE Motherboard

• Processor Support:
  • Supports AMD Athlon 64 X2 Dual-Core / Athlon 64 FX / Athlon 64 / Sempron
  • Supports AMD Cool'n'Quiet Technology
  • Socket AM2


• FSB:
  • 2000 MTS


• Chipset:
  • nVidia GeForce 6100

• Memory:
  • 2 x 240-pin DDR2 DIMM socket support up to 4 GB
  • Support Dual Channel DDR2 533/667/800 MHz


• Expansion Slots:
  • 1 x PCIe x16
  • 1 x PCIe x1
  • 2 x PCI 32bit/33MHz slots


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 2 x SATA2 3Gb/s
  • RAID 0, RAID 1 configuration


• Audio:
  • Realtek ALC861VD 6-Channel HD Audio
  • 2/4/5.1
  • Compliant with HD specification


• Video:
  • NVIDIA GeForce 6100 GPU, On Board Graphic
  • Share Memory: Maximum up to 256MB


• BIOS:
  • Award BIOS with 4Mb Flash ROM
  • Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
  • Supports ACPI revision 1.0 specification


• Form Factor:
  • Micro-ATX Form Factor, 20.8cm X 24.4cmcm
