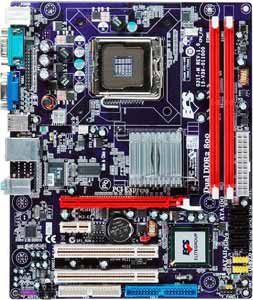

ECS G31T-M Motherboard
Supports Intel® Core 2 Quad/Core 2 Duo / Pentium Dual-Core Inside (E21xx series)/Celeron 4xx series processor in the Socket LGA 775, Intel® G31 chipset, 1 x PCIe x16, 1 x PCIe x1, 2 x 32-bit 33MHz PCI, DDR2, LAN, USB, IDE, SATA2, Video, Audio, SPDIF, Micro-ATX Form Factor |
|
- Internal I/O Interface:
- 2 x USB 2.0/1.1 headers
- 1 x FDD connector supports two 360K~2.88MB FDDs
- 1 x LPT1 header
- 1 x SPDIF out header
- 1 x IDE port
- 4 x SATA2 ports
- Rear Panel I/O Ports:
- 1 x PS/2 Keyboard
- 1 X PS/2 Mouse
- 1 x Serial port (COM1)
- 1 x VGA port
- 1 x Audio port (Line-in, Line-out, Mic-in)
- 4 x USB 2.0/1.1 ports
- 1 x RJ 45 Port
- Video:
- Integrated Intel® Graphics Media Accelerator 3100 (GMA3100)
- Max Dynamic Video Memory : 287MB (Vista) / 384MB (XP)
|
ECS G31T-M Motherboard
- Processor Support:
- Supports Intel® Core 2 Quad/Core 2 Duo / Pentium Dual-Core Inside (E21xx series)/Celeron 4xx series processor
- Supports Intel 45nm Core 2 Extreme (Yorkfield-XE), Core 2 Quad(Yorkfield) and Core2 Duo(Wolfdale) series processors
- Socket LGA 775
- FSB:
- Chipset:
- Memory:
- Dual-channel DDR2 800 memory architecture
- 4 x 240-pin DDR2 DIMM socket support up to 8 GB
- Support DDR2 800/667 DDR2 SDRAM
- Expansion Slots:
- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slots
- 2 x PCI 32bit/33MHz slots
- Storage:
- 1 x Ultra DMA100/66
- 4 x Serial ATAII 3.0Gb/s devices
- Audio:
- Realtek ALC662 6-channel
- 2/4/5.1
- Compliant with HD audio specification
- On-Board LAN:
- Realtek RTL8101E 10/100 LAN
- BIOS:
- AMI BIOS with 8Mb SPI ROM
- Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
- Supports ACPI revision 1.0 specification
- Form Factor:
- Micro-ATX Form Factor, 244mm x 200mm
|
