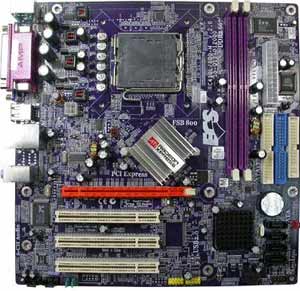

ECS RC410L/800-MGF(V2.0) Motherboard
Supports Intel ® Pentium 4/ Celeron D/ Pentium D processor in the Socket LGA 775, ATI ® RC410L chipset, 1 x PCIe x16, 3 x 32-bit 33MHz PCI, DDR2, LAN, USB, IDE, SATA, RAID, Video, Audio, SPDIF, Firewire, Micro-ATX Form Factor |
|
- Internal I/O Interface:
- 2 x USB 2.0/1.1 headers
- 1 x FDD connector supports two 360K~2.88MB FDDs
- 1 x COM2 header (optional)
- 1 x 1394a header
- 1 x SPDIF out header
- 2 x IDE port
- 4 x SATA ports
- Rear Panel I/O Ports:
- 1 x PS/2 Keyboard
- 1 X PS/2 Mouse
- 1 x Serial port (COM1)
- 1 x Parallel port (LPT)
- 1 x 1394a port
- 1 x VGA port
- 1 x Audio port (Line-in, Line-out, Mic-in)
- 4 x USB 2.0/1.1 ports
- 1 x RJ 45 Port
- Video:
- RC410L on-chip (Radeon X300-based 2D/3D graphics)
|
ECS RC410L/800-MGF(V2.0) Motherboard
- Model:
- ECS RC410L/800-MGF(V2.0) Motherboard
- Processor Support:
- Supports Pentium 4/ Celeron D/ Pentium D processor
- Support Hyper-Threading Technology
- Socket LGA 775
- FSB:
- Chipset:
- Memory:
- Single DDR2 memory architecture
- 2 x 240-pin DDR2 DIMM socket support up to 2 GB
- Support 667/533/400 DDR2 SDRAM
- Expansion Slots:
- 1 x PCI Express x16 slot
- 3 x PCI 32bit/33MHz slots
- Storage:
- 2 x Ultra DMA 133/100/66
- 4 x Serial ATA
- RAID0 & RAID1 configuration
- Audio:
- Realtek ALC655 6-Channel audio CODEC
- 2/4/5.1
- Compliant with AC'97 2.3 specification
- Firewire:
- VIA 6307 support 2 x IEEE1394a ports
- On-Board LAN:
- Realtek RTL8110SC Giga LAN Controller
- BIOS:
- AMI BIOS with 4Mb SPI ROM
- Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
- Supports ACPI revision 1.0 specification
- Form Factor:
- Micro-ATX Form Factor, 244mm x 244mm
|
