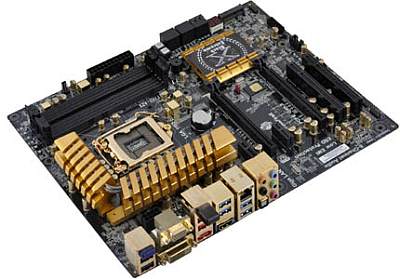

ECS Z77H2-A2X (V1.0) Motherboard

• Rear Panel I/O Ports:
  • 4 x USB 3.0 ports
  • 4 x USB 2.0 Ports
  • 1 x D-sub(VGA)
  • 1 x HDMI Port
  • 1 x DVI Port
  • 1 x RJ45 LAN connector
  • 1 x Audio port (Line-in,4x Line-out, SPDIF out)
  • 1 x Wireless LAN Dongle
  • 1 x Bluetooth Dongle
  • 1 x eSATA 3Gb/s port
• Internal I/O Interface:
  • 1 x 24-pin ATX Power Supply connector
  • 1 x 8-pin ATX Power Supply Connector
  • 1 x 4-pin CPU_FAN connector
  • 1 x 3-pin SYS_FAN connector
  • 1 x 3-pin PWR_FAN connector
  • 1 x USB 2.0 header support additional 2 USB ports with EZ charger technology
  • 1 x USB 3.0 header supports additional 2 USB 3.0 Ports
  • 2 x Serial ATA 3Gb/s connectors (SATA2 1/ 2)
  • 4 x Serial ATA 6Gb/s connectors (SATA3 3/ 4/ 5/ 6)
  • 1 x COM header
  • 1 x Clear CMOS header
  • 1 x Case Open header
  • 1 x Buzzer
  • 1 x SPDIF out header
  • 1 x Front panel audio header
  • 1 x debug post LED
  • 1 x Power on button
  • 1 x Reset button
• On-Board LAN:
  • RealTek RTL 8111E Gigabit Lan

Motherboard Specifications

• Model:
  • ECS Z77H2-A2X (V1.0) Motherboard

• CPU:
  • LGA1155 socket for new 3rd Generation Intel ® Core i7 series processor/Intel ® Core i5 series processor/Intel ® Core i3 series processor/Intel ® Pentium ® processors/Intel ® Celeron ® Processors
  • DMI 5.0GT/s
  • TDP: 125W
  • Note: Please go to ECS website for the latest CPU support list.
• SYSTEM BIOS:
  • AMI BIOS with 64Mb SPI Flash ROM
  • Support ECS M.I.B X Utility
  • Supports Plug and Play
  • Supports ACPI & DMI
  • Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor
  • Audio, LAN, can be disabled in BIOS
  • F7 hot key for boot up devices option
  • Support over-clocking
  • Supports Dual Display (Intel has Three Display)
  • Support GUI UEFI BIOS
  • Supports Multi-language BIOS
  • Supports eBLU
  • Support eOC
  • Supports eDLU
  • Supports eSF
  • Support EZ Charger
• Chipset:
  •  Intel ® Z77 Express Chipset
• Memory:
  • Dual-channel DDR3 memory architecture
  • 4 x 240-pin DDR3 DIMM socket support up to 32 GB
  • Support DDR3 up to 2800(OC)/2600(OC)/2400(OC)/2133(OC)/1800(OC)/1600 DDR3 SDRAM
  • Note: Please go to ECS website for the latest Memory support list.
    Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows?32-bit OS.
    For Windows?64-bit OS with 64-bit CPU, there is no such limitation
• Expansion Slots:
  • 2 x PCI Express Gen 3.0 x16 slots
  • 2 x PCI Express x1 slots
  • 2 x PCI slots
  • 1 x Mini PCI Express x1 slot
    Supports Mini SATA
    Supports Mini PCI Express
    *(When using two VGA cards, the bandwidth is x8 badnwidth; when using one VGA card, the bandwidth is x16.)
• On-Board Audio:
  • Realtek ALC892 8-Ch High Definition audio CODEC
  • Compliant with HD audio specification
• On-Board Video:
  • Integrated DirectX 11 graphics processor
  • VGA Port
  • DVI Port
  • HDMI Port
• Storage:
  • Support by Intel ® Z77
    2 x Serial ATA 3.0Gb/s devices (SATA2 1/ 2)
    2 x Serial ATA 6.0Gb/s devices (SATA3 3/ 4)
  • Support by ASMEDIA ASM1061
    2 x Serial ATA 6.0Gb/s devices (SATA3 5/ 6)
• Form Factor:
  • ATX Size,
  • 305mm*244mm (12 Inch x 9.6 Inch)
