• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x D-Sub port
  • 1 x parallel port
  • 1 x serial port
  • 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• On-Board LAN:
  • Realtek RTL8110SC Gigabit Ethernet controller


• Management:
  • System voltage detection
  • CPU/System temperature detection
  • CPU/System/Power fan speed detection
  • CPU overheating warning
  • CPU/System/Power fan fail warning
  • CPU fan speed control

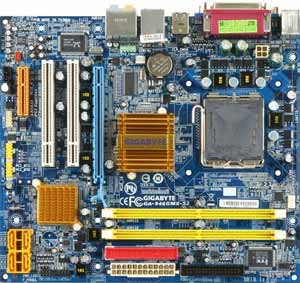

Gigabyte GA-946GMX-S2 Motherboard

• Model:
  • Gigabyte GA-946GMX-S2 Motherboard

• Processor Support:
  • Support for an Intel ® CoreTM 2 Extreme processor/ Intel ® CoreTM 2 Quad processor/Intel ® CoreTM 2 Duo processor/ Intel ® Pentium ® processor Extreme Edition/Intel ® Pentium ® D processor/ Intel ® Pentium ® 4 processor Extreme Edition/Intel ® Pentium ® 4 processor/ Intel ® Celeron ® D processor
  • Socket LGA 775


• FSB:
  • 1066/800/533MHz


• Chipset:
  • Intel ® 946GZ

• Memory:
  • 2 DDR2 DIMM memory slots (supports up to 2GB memory)
  • Supports 1.8V DDR2 DIMM
  • Supports dual channel DDR2 667/533 DIMM


• Expansion Slots:
  • 1 x PCI-E x16
  • 1 x PCI-E x1
  • 2 x PCI 32bit/33MHz slots


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 4 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3) supporting up to 3 SATA 3Gb/s devices


• Audio:
  • Realtek ALC888 audio codec HD audio Codec
  • 2/4/5.1/7.1-channel
  • Support for CD In
  • Support for S/PDIF Out


• Video:
  • Integrated Intel ® Graphics Media Accelerator 3000


• BIOS:
  • AWARD BIOS
  • 1 x 4 Mbit flash
  • PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b


• Form Factor:
  • Micro-ATX Form Factor
  • 22.0 X 24.4CM
