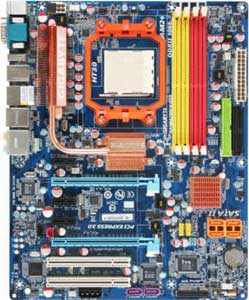

Gigabyte GA-MA790FX-DS5 Motherboard
Support for Socket AM2+/ AM2 processors: AMD PhenomFX processor/ AMD Phenom processor/ AMD Athlon 64 FX processor/AMD Athlon 64 X2 Dual-Core processor/AMD Athlon 64 processor/AMD Sempron processor, AMD 790FX chipset, 2 x PCI Express X16 (1 runs x8), 3 x PCI Express X1, 2 x 32-bit 33MHz PCI, DDR2, LAN, USB, IDE, SATA2, RAID, eSATA, Audio, SPDIF, Firewire, ATX Form Factor |
|
- Internal I/O Interface:
- 1 x Floppy connector
- 2 x Usb headers (Total 10)
- 1 x S/PDIF In header
- 1 x S/PDIF Out header
- 1 x IEEE 1394a header
- 1 x parallel port header
- 6 x SATA2
- 1 x IDE Port
- Rear Panel I/O Ports:
- 1 x PS/2 Keyboard
- 1 X PS/2 Mouse
- 2 x IEEE 1394a ports
- 1 x coaxial S/PDIF Out connector
- 1 x optical S/PDIF Out connector
- 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
- 1 X Seria
- 2 x eSATA 3Gb/s portsl
- 6 x USB
- 1 x RJ 45 Port
- On-Board LAN:
- Realtek 8111B chip (10/100/1000 Mbit)
- Management:
- CPU / System temperature detection
- CPU / System fan speed detection
- CPU warning temperature
- CPU / System fan failure warning
- CPU Smart Fan Control
- Form Factor:
- ATX Form Factor, 30.5cm x 24.4cm
|
GigabyteGA-MA790FX-DS5 Motherboard
- Model:
- Gigabyte GA-MA790FX-DS5 Motherboard
- Processor Support:
- Support for Socket AM2+/ AM2 processors: AMD PhenomFX processor/ AMD Phenom processor/ AMD Athlon 64 FX processor/AMD Athlon 64 X2 Dual-Core processor/AMD Athlon 64 processor/AMD Sempron processor
- FSB:
- Chipset:
- Memory:
- 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
- Dual channel memory architecture
- Support for DDR2 1066/800/667 MHz memory modules
- Support ECC memory
- Expansion Slots:
- 2 x PCI Express x16 slots supporting ATI CrossFireX technology (The PCIE_16_1 slot supports x16; the PCIE_16_2 supports x8).
- 3 x PCI Express X1
- 2 x 32-bit 33MHz PCI
- Storage:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
- 4 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3) supporting up to 4 SATA 3Gb/s devices
- Support for SATA RAID 0, RAID 1 and RAID 0+1
- 2 x SATA 3Gb/s connectors (GSATAII_1, GSATAII_2) supporting up to 2 SATA 3Gb/s devices
- 2 x eSATA 3Gb/s ports on the back panel supporting up to 2 SATA 3Gb/s devices
- Support for SATA RAID 0, RAID 1, and JBOD
- Audio:
- Realtek ALC889A codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for DTS (dts NEO:PC)
- Support for S/PDIF In/Out
- Support for CD In
- Firewire:
- T.I. TSB43AB23 chip
- Up to 3 IEEE 1394a ports
- BIOS:
- AWARD BIOS
- 2 x 4 Mbit flash
- Support for Dual BIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
|
