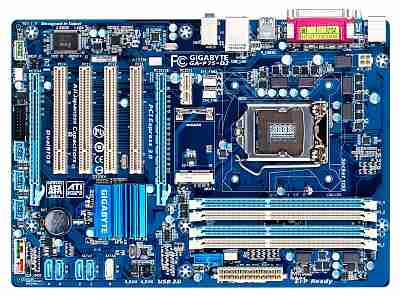

Gigabyte GA-P75-D3 Motherboard

• Storage:
  • Chipset:
    1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device
    4 x SATA 3Gb/s connectors (SATA2 1~4) supporting up to 4 SATA 3Gb/s devices
    1 x mSATA connector

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard port
  • 1 x PS/2 mouse port
  • 1 x parallel port
  • 1 x serial port
  • 1 x coaxial S/PDIF Out connector
  • 2 x USB 3.0/2.0 ports
  • 2 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks (Line In/Line Out/Microphone)

• Internal I/O Interface:
  • 1 x 24-pin ATX main power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x SATA 6Gb/s connector
  • 4 x SATA 3Gb/s connectors
  • 1 x mSATA connector
  • 1 x CPU fan header
  • 3 x system fan headers
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB 3.0/2.0 header
  • 3 x USB 2.0/1.1 headers
  • 1 x Clear CMOS jumper
  • 1 x Trusted Platform Module (TPM) header

• Hardware Monitoring:
  • System voltage detection
  • CPU/System temperature detection
  • CPU/System fan speed detection
  • CPU overheating warning
  • CPU/System fan fail warning
  • CPU/System fan speed control
    * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

• I/O Controller :
  • iTE I/O Controller Chip

• Operating System:
  • Support for Microsoft ® Windows 8/7/XP

• Bundle Software:
  • Norton Internet Security (OEM version)
  • Intel ® Rapid Start Technology
  • Intel ® Smart Connect Technology

Motherboard Specifications

• Model:
  • Gigabyte GA-P75-D3 Motherboard

• Processor Support:
  • Support for Intel ® Core i7 processors/Intel ® Core i5 processors/ Intel ® Core i3 processors/Intel ® Pentium ® processors/Intel ® Celeron ® processors in the LGA1155 package
  • L3 cache varies with CPU
    (Some Intel ® Core processors require a graphic card, please refer "CPU support List" for more information.)
• Chipset:
  • Intel ® B75 Express Chipset
• Memory:
  • 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
    * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  • Dual channel memory architecture
  • Support for DDR3 1600/1333/1066 MHz memory modules
    * To support DDR3 1600 MHz, you must install an Intel 22nm CPU.
  • Support for non-ECC memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
    * To support XMP memory, you must install an Intel 22nm CPU.
    (Please refer "Memory Support List" for more information.)

• Expansion Slots:
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    (PCIEX16 slot conforms to PCI Express 3.0 standard.)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    * The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed.
  • 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  • 1 x PCI Express x1 slot
    (PCIEX4/PCIEX1 slots conform to PCI Express 2.0 standard.)
  • 4 x PCI slots
• Video Support:
  • Support for AMD CrossFireX technology

• On-Board Audio:
  • Realtek ALC887 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • Support for S/PDIF Out

• On-Board LAN:
  • 1 x Realtek GbE LAN chip (10/100/1000 Mbit)
• BIOS:
  • 2 x 64 Mbit flash
  • Use of licensed AMI EFI BIOS
  • Support for DualBIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
• Special Features:
  • Support for @BIOS
  • Support for Q-Flash
  • Support for Xpress Install
  • Support for Xpress Recovery2
  • Support for Auto Green
  • Support for ON/OFF Charge
  • Support for Q-Share
  • Support for LAN Optimizer (Intelligent optimization network management tool)
• Form Factor:
  • ATX Form Factor
  • 30.5cm x 21.5cm (9.6 Inch x 8.5 Inch)
