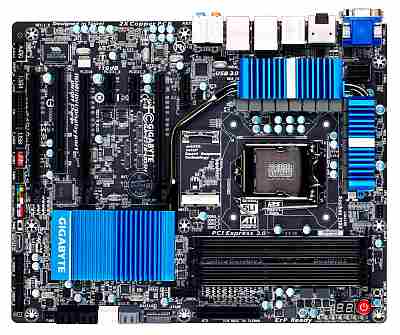

Gigabyte GA-Z77X-UD5H-WB WIFI Motherboard

• Storage:
  • Chipset:
    2 x SATA 6Gb/s connectors (SATA3 0/SATA3 1) supporting up to 2 SATA 6Gb/s devices
    4 x SATA 3Gb/s connectors (SATA2 2~5) supporting up to 4 SATA 3Gb/s devices
    1 x mSATA connector
    * The SATA2 5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
  • 2 x Marvell 88SE9172 chips:
    3 x SATA 6Gb/s connectors (GSATA3 6/7/8) supporting up to 3 SATA 6Gb/s devices
    1 x eSATA 6Gb/s connector on the back panel supporting up to 1 SATA 6Gb/s device
    Support for RAID 0 and RAID 1

• Rear Panel I/O Ports:
  • 1 x D-Sub port
  • 1 x DVI-D port
  • 1 x optical S/PDIF Out connector
  • 1 x HDMI port
  • 1 x DisplayPort
  • 1 x eSATA 6Gb/s connector
  • 4 x USB 3.0/2.0 ports
  • 2 x USB 2.0/1.0 ports
  • 1 x IEEE 1394a port
  • 2 x RJ-45 ports
  • 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In/Mic In, Line Out)

• Internal I/O Interface:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x PCIe power connector
  • 5 x SATA 6Gb/s connectors
  • 4 x SATA 3Gb/s connectors
  • 1 x mSATA connector
  • 1 x CPU fan header
  • 4 x system fan headers
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 3 x USB 3.0/2.0 headers
  • 2 x USB 2.0/1.1 headers
  • 1 x Clear CMOS jumper
  • 1 x Trusted Platform Module (TPM) header
  • 1 x power button
  • 1 x reset button
  • 1 x Clear CMOS button
  • 1 x heatsink LED power connector
  • 1 x BIOS Switch
  • Voltage Measurement Points

• Hardware Monitoring:
  • System voltage detection
  • CPU/System temperature detection
  • CPU/System fan speed detection
  • CPU overheating warning
  • CPU/System fan fail warning
  • CPU/System fan speed control
    * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

• Bundle Software :
  • Norton Internet Security (OEM version)
  • Intel ® Rapid Start Technology
  • Intel ® Smart Connect Technology
  • Intel ® Smart Response Technology
  • LucidLogix Virtu MVP
    * Make sure the monitor cable has been connected to the integrated graphics port on the back panel.

• Operating System :
  • Support for Microsoft ® Windows 8/7/XP

Motherboard Specifications

• Model:
  • Gigabyte GA-Z77X-UD5H-WB WIFI Motherboard

• Processor Support:
  • Support for Intel ® Core i7 processors/Intel ® Core i5 processors/ Intel ® Core i3 processors/Intel ® Pentium ® processors/Intel ® Celeron ® processors in the LGA1155 package
  • L3 cache varies with CPU
    (Some Intel ® Core processors require a graphic card, please refer "CPU support List" for more information.)
• Chipset:
  • Intel ® Z77 Express Chipset
• Memory:
  • 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
    * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  • Dual channel memory architecture
  • Support for DDR3 2400(OC)/1600/1333/1066 MHz memory modules
  • Support for non-ECC memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)

• Expansion Slots:
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
  • 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot is available only when an Intel 22nm (Ivy Bridge) CPU is installed.
    * The PCIEX4 slot shares bandwidth with the PCIEX8 and PCIEX16 slots. When the PCIEX4 slot is populated, the PCIEX16 slot will operate at up to x8 mode and the PCIEX8 will operate at up to x4 mode.
    (The PCIEX16, PCIEX8 and PCIEX4 slots conform to PCI Express 3.0 standard.)
    * PCIE Gen.3 is dependent on CPU and expansion card compatibility.
  • 3 x PCI Express x1 slots
    (All PCI Express x1 slots conform to PCI Express 2.0 standard.)
  • 1 x PCI slot
  • Support for AMD CrossFireX / NVIDIA SLI technology
• On-Board Video:
  • Integrated Graphics Processor:
  • 1 x D-Sub port
  • 1 x DVI-D port, supporting a maximum resolution of 1920x1200
    * The DVI-D port does not support D-Sub connection by adapter.
  • 1 x HDMI port, supporting a maximum resolution of 1920x1200
  • 1 x DisplayPort, supporting a maximum resolution of 2560x1600p

• On-Board Audio:
  • Realtek ALC898 codec
  • Support for X-Fi Xtreme Fidelity ® and EAX ® Advanced HD 5.0 technologies
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out

• On-Board LAN:
  • 1 x Atheros GbE LAN chip (10/100/1000 Mbit) (LAN1)
  • 1 x Intel GbE LAN chip (10/100/1000 Mbit) (LAN2)
• BIOS:
  • 2 x 64 Mbit flash
  • Use of licensed AMI EFI BIOS
  • Support for DualBIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

• I/O Controller :
  • iTE I/O Controller Chip
• Special Features:
  • Support for @BIOS
  • Support for Q-Flash
  • Support for Xpress Install
  • Support for Xpress Recovery2
  • Support for EasyTune
    * Available functions in EasyTune may differ by motherboard model.
  • Support for eXtreme Hard Drive (X.H.D)
  • Support for Auto Green
  • Support for ON/OFF Charge
  • Support for Q-Share
  • Support for 3D Power
  • Support for EZ Setup
  • Support for LAN Optimizer (Intelligent optimization network management tool)
• Form Factor:
  • ATX Form Factor
  • 30.5cm x 24.4cm (12 Inch x 9.6 Inch)
