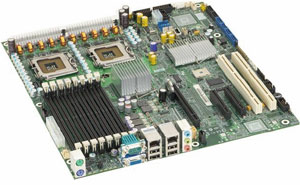

Intel S5000XVNSATAR Motherboard
Dual LGA771 support Dual-Core Intel Xeon Processor 5000, Intel ® 5000X chipset, 1 PCI-E x16, 2 PCI-E x4 ( 8x connector), 1 PCI-X 133 Mhz, 1 PCI-X 100 Mhz, DDR2, Dual LAN, USB, IDE, SATA2, RAID, Audio, E-ATX Form Factor |
|
- Internal I/O Interface:
- 2 x USB 2.0 connector (6 Total )
- 6x SATA connectors
- 1 IDE ports support 2 IDE devices
- Rear Panel I/O Ports:
- 1 x PS/2 keyboard
- 1 x PS/2 Mouse
- 1 Serial port
- Audio I/O Jacks
- 4 x USB 2.0 Ports
- 2 x RJ 45 Port
- Management:
- Intel ® Management Module Professional Edition, Advanced Edition Support
- ACPI Power Management
- Wake-On-LAN (WOL)
- Power On LAN
- AC Power Failure Recovery
- Intel ® Server Management family of software
- Form Factor:
- E-ATX
- 12 x 13 inch / 30.4 x 33 cm
|
Intel S5000XVNSATAR Motherboard
- Model:
- Intel S5000XVNSATAR Motherboard
- Processor Support:
- Dual LGA771 support Dual-Core Intel Xeon Processor 5000 sequence
- FSB:
- 667 MHz, 1066 MHz, or 1333 MHz
- Chipset:
- Memory:
- 8x 240pin DDR2-667/533 FB-DIMMs
- Dual Channel, ECC/REG
- Max Capacity 32GB
- Expansion Slots:
- 1 x PCI-Express x16
- 2 x PCI-Express x4 (x8 connectors)
- 1 x PCI-X(133MHz)
- 1 x PCI-X(100MHz)
- Audio:
- Realtek ALC260 2-Channel High Definition Audio CODEC
- Storage:
- Single-Channel ATA 100 (Support 2 IDE devices)
- Six 3Gb/s SATA ports supporting RAID 0, 1, 10 with optional AXXRAKSW5 for RAID 5
- On-Board LAN:
- 2 x Intel 82563EB Gigabit Ethernet
- BIOS:
- AMI* BIOS, Multiboot BBS (BIOS Boot Specification)
- SMBIOS 2.3.1; Below 1MB in memory
- Plug and Play
- ACPI 2.0, IPMI, DMI, CIM, SNMP, ICM
|
