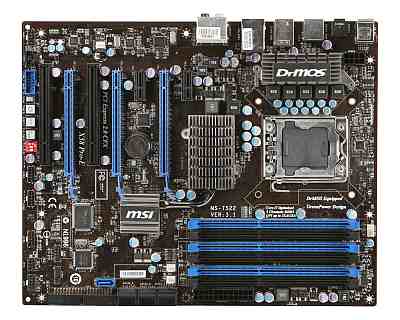

MSI X58 Pro-E Motherboard

• Storage:
  • One Ultra DMA 66/100/133 IDE controller integrated in JMicron ® 363.
  • Supports PIO, Bus Master operation modes.
  • Can connect up to two Ultra ATA drives.
  • SATAII controller integrated in ICH10R/JMicron ® 363 chipset
  • Up to 3Gb/s transfer speed.
  • Supports six SATAII ports by ICH10R (SATA1~6)
  • Supports one SATAII port by JMicron 363 (SATA7)
  • Supports one eSATA port by JMicron 363.
  • Supports AHCI controller with SATA RAID 0/1/5/10 by ICH10R.
    *The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x eSATA port
  • 1 x IEEE1394 port
  • 6 x USB 2.0 ports
  • 1 x RJ45 LAN Jack
  • 1 x 6 in 1 audio jack
  • 1 x Optical SPDIF-out
• Internal I/O Interface:
  • ATX 24-Pin power connector
  • 8-pin ATX 12V power connector
  • CPU x 1 / System x 3 FAN connectors
  • CD-in connector
  • Front panel audio connector
  • Front panel connector
  • 1 x chasis intrusion connector
  • 1 x serial port pinheader
  • 3 x USB 2.0 connectors
  • 7 x Serial ATAII connectors
  • 1 x ATA133 connector
  • 1 x IEEE1394 connector support additional 1 port
  • 1 x Reset Button
  • 1 x Power Button
  • 1 x Clear CMOS Button
  • 1 x SPDIF-out connector
  • 1 x TPM module connector
    *The floppy disk cable will be optional.

Motherboard Specifications

• Model:
  • MSI X58 Pro-E Motherboard

• CPU:
  • Supports Intel ® i7 based processors in LGA1366 package.
    Please refer to CPU Support for compatible CPU; the above description is for reference only.
• Chipset:
  • Chipset
  • Intel ® X58 Chipset
  • Supports QPI up to 6.4GT/s
  • Intel ® ICH10R Chipset
  • Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 12 ports.
  • 6 SATAII ports with transfer rate up to 3Gb/s.
  • PCI Master v2.3, I/O APIC.
  • ACPI 2.0 compliant.
  • Serial ATA RAID 0/1/5/10.
  • Integrated AHCI controller.

• FSB:
  • 6.4GT/s
• IEEE1394 / FireWire:
  • JMicron ® 381 chipset
  • Supports up to two 1394 ports. (Rear panel x1, pinheader x1)
  • Transfer rate is up to 400Mbps.

• Memory:
  • Supports six unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333*/1600* (OC) DRAM, 24GB Max
  • Supports 1Gb/ 2Gb/ 4Gb DRAM size
  • Supports x8 / x16 data lines per DIMM
  • Supports up to 3 channel mode
• Expansion Slots:
  • 3 PCI Express gen2 x16 slots
    - two dark Blue PCIE x16 slots (PCI_E2 &PCI_E4) support up to PCIE x16 speed, one Blue PCIE x16 slot(PCI_ E5)
  • supports up to PCIE x4 speed
  • supports ATI ® Crossfire
  • 2 PCI Express gen1 x1 slots
  • 2 PCI slot, support 3.3V/ 5V PCI bus Interface
• On-Board Audio:
  • Chipset integrated by Realtek ® ALC889
  • Flexible 8-channel audio with jack sensing
  • Compliant with Azalia 1.0 Spec
  • Meet Microsoft Vista Premium spec
• On-Board LAN:
  •  Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111C.
• BIOS:
  • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
  • The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
• Mounting:
  • 9 mounting holes.
• Form Factor:
  • 30.5cm(L) x 24.4cm(W) (12 Inch x 9.6 Inch)
  • ATX Form Factor
