• Rear Panel I/O Ports:
  • 1x VGA Port
  • 2 RJ45 LAN ports
  • 2x USB rear ports 2.0 Compliant, 1.1 Compatible
  • 1 Fast UART 16550 serial ports 1 Header
  • Stacked PS/2 keyboard and mouse ports


• On board Video:
  • ATI Rage XL 8MB


• On-Board LAN:
  • Two Broadcom BCM5721 Gigabit LAN / Ethernet Controllers
  • Supports 10Base-T, 100Base-TX, and 1000Base-T, RJ45 output


• IPMI:
  • 1U support: Intelligent Platform Management Interface v.2.0+ (Optional: 1UIPMI-B)
  • Remote Management Module
  • (Card not included)


• Manageability:
  • ACPI/API Power Management
  • Wake-On-Ring (WOR) header
  • Wake-On-LAN (WOL) header
  • Monitors CPU Core Voltages, +1.5V, +2.5V, +3.3V, +5V, ±12V, HyperTransport Link voltage 1.2V, memory voltage 2.5V, 3.3V Standby, VBAT
  • Power-on mode control for AC power loss recovery
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • I2C temperature sensing logic
  • Up to 5-fan status tachometer monitoring
  • Internal/External modem remote ring-on
  • Up to five 3-pin fan headers
  • CPU / System Overheat LED
  • Suspend-State Indicator LED
  • +5V Standby Alert LED
  • Super Doctor III, Watch Dog / NMI, Optional IPMI 2.0
  • Chassis intrusion detection
  • Chassis intrusion header

Supermicro H8DCR-3 Specifications

• Model:

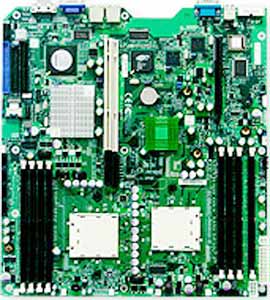

  • Supermicro H8DCR-3 Motherboard

• Processor Support:
  • Dual 940-pin ZIF Sockets
  • Supports up to two Dual-Core AMD Opteron 200 Series processor(s)
  • Single CPU configurations are not recommended
  • VRM x3

• Chipset:
  • nVidia nForce Pro 2200 (CK804)
  • AMD 8132


• Memory:
  • Eight 184-pin DIMM sockets
  • Supports up to 16 GB DDR 400 MHz memory or
  • Supports up to 32 GB DDR 333 MHz memory or
  • Supports up to 32 GB DDR 266 MHz memory
  • Single or Dual (recommended) channel memory support
  • DDR 400/333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
  • 256 MB, 512 MB, 1GB, 2GB, 4GB, 2.5 V only
  • Corrects single-bit errors, Detects double-bit errors (using ECC memory)
  • For Single CPU: Memory must be populated in CPU1 DIMMs only
  • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks


• Expansion Slots:
  • 2 PCI-express x8 slots
  • 1x 64-bit 133MHz PCI-X (3.3V) slots
  • 1x 64-bit 100MHz PCI-X (3.3V) slots
  • Note: Dual Processors are required for correct PCI-X expansion slot operation

• Storage:
  • Dual EIDE channels support up to four UDMA IDE devices
  • Supports UDMA Mode 5, Supports PIO Mode 4, Supports ATA 100/133
  • Integrated SATA 3.0Gbps Controller
  • nVidia nForce Pro 2200 SATA 3.0Gbps Controller
  • nVidia RAID 2.0
  • SATA RAID 0, 1, 0+1 Support
  • Four Serial ATA Ports
  • Four SATA hard drives supported


• SCSI:
  • Integrated Adaptec AIC-9410W(SAS) Controller
  • Two Serial Attached SCSI (SAS) ports (1 internal, 1 external)
  • Each SAS port supports up to 4 SAS / SATA drives for a total of up to 8 SAS or SATA hard drives


• SAS:
  • Adaptec AIC-9410W SAS Controller
  • 8 SAS Ports
  • RAID 0, 1, 10
  • Zero-Channel RAID: Supermicro All-In-One ZCR card: AOC-LPZCR1


• BIOS:
  • 8Mb Flash EEPROM with Phoenix ® BIOS
  • 49LF080A BIOS Chip
  • Plug and Play (PnP)
  • ACPI 2.0/ 1.0, DMI 2.3
  • BIOS Rescue Hot Keys
  • SMBIOS 2.3
  • USB Legacy support

• Form Factor:
  • Extended ATX
  • 12" x 13.05" (30.5cm x 33.2cm)
