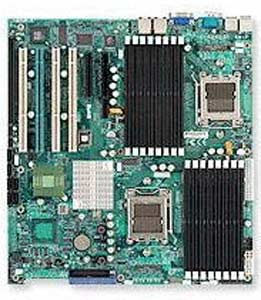

Supermicro H8DME-2 Dual Opteron 2000 Motherboard
Dual 1207-pin Socket F, Quad-Core / Dual-Core AMD Opteron 2000 Series, nVidia MCP55 Pro,
2x PCI Express x8 slots,
2 PCI-X 64 Bits 133Mhz, 2 64-bit 100MHz PCI-X, IPMI 2.0 expansion slot, Sixteen 240-pin DIMM sockets Up to 64 GB, Video, Dual LAN, USB,
IDE, SATA 2 E ATX Form Factor |
|
- Internal I/O Interface:
- 1 Floppy port; 1.44 MB, 2.88 MB, 3-mode support
- 6 SATA2 ports
- 4 USB Internal Headers
- Storage/RAID:
- nVidia MCP55 Pro SATA2 3.0Gbps Controller
- 6 SATA Ports
- SATA RAID 0, 1, 0+1, 5, JBOD Support
- nVidia RAID 2.0
- Single EIDE channel support up to two UDMA IDE devices
- Supports UDMA Mode 5
- Supports PIO Mode 4
- Supports ATA 100/133
- Rear Panel I/O Ports:
- VGA connectors
- 2 RJ45 LAN ports
- 2 USB Ports 2.0 Compliant, 1.1 Compatible
- 1 Fast UART 16550 serial ports 1 Header
- 1 serial port header
- Stacked PS/2 keyboard and mouse ports
- PC Health Monitoring:
- Monitors CPU Core Voltages, +1.5V, +3.3V, +5V, ±12V, 5V Standby, HyperTransport Link voltage 1.2V, memory voltage 1.8V, VBAT
- CPU switching voltage regulator
- Total up to 8-fan status tachometer monitoring
- Up to six 3-pin and two 4-pin fan headers
- Status monitor for speed control / Stauts monitor for on/off control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
- Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- Thermal Control for 8x Fan Connectors
- I2C Temperature Sensing Logic
- CPU / System Overheat LED/ Suspend-State Indicator LED
- +5V Standby Alert LED
- Chassis Intrusion Detection
- Chassis Intrusion Header
- Manageability:
- ACPI/API Power Management
- Wake-On-Ring (WOR) header
- Wake-On-LAN (WOL) header
- Keyboard Wakeup from Soft-Off
- Power-on mode control for AC power loss recovery
- Internal/External modem remote ring-on
|
Tomcat i875PR
Specifications
- Model:
-
Supermicro H8DME-2 Dual Opteron 2000
Motherboard
- Processor Support:
- Dual 1207-pin Socket F
- Supports up to two Quad-Core / Dual-Core AMD Opteron 2000 Series (Socket F) processor(s)
- FSB 1000MHz HyperTransport
- Chipset:
-
nVidia MCP55 Pro
- NEC uPD720400
- Memory:
- Sixteen 240-pin DIMM sockets
- Supports up to 64 GB DDR2 667 MHz memory
- Supports up to 32 GB DDR2 533 MHz memory
-
Supports up to 64 GB DDR2 400 MHz memory
- For Single CPU: Memory must be populated in CPU1 DIMMs only
- For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
- Dual channel memory bus
- DDR2 667/533/400 MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs, 256 MB, 512 MB, 1GB, 2GB, 4GB, 1.8V only
- Expansion Slots:
- 2x PCI Express x8 slots
- 2 64-bit 133/100MHz PCI-X (3.3V) slots
- 1 SEPC (Supermicro extended Power Connector) slot for 2U active riser cards with a power extension (i.e. CSE-RR2UE-AX)
- 2 64-bit 100MHz PCI-X (3.3V) slot
- IPMI 2.0 expansion slot
- On-Board LAN:
- nVidia MCP55 Pro Chipset Dual-port LAN / Ethernet Controller
-
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- On-Board Video:
- ATI ES1000 Graphics Controller
- VGA Port
- Management Software :
- Optional IPMI (Intelligent Platform Management Interface) 2.0
- Super Doctor III
- Watch Dog
- IPMI:
- Support for Intelligent Platform Management Interface v.2.0
- 200-pin IPMI slot
- (Optional: AOC-SIMLC(+))
- (Optional: AOC-SIM1U(+))
- RMM (Remote Management Module)
- (Card not included)
- BIOS:
- 8Mb Flash EEPROM with AMI® BIOS
- Plug and Play (PnP)
- Fan Speed Control
- ACPI 2.0, DMI 2.3, PCI 2.2
- BIOS Rescue Hot Key
- Hardware BIOS Virus Protections
- USB Keyboard Support
- SMBIOS 2.3
- Form Factor:
- Extended ATX, 12" x 13.05" (30.5cm x 33.2cm)
|
