• Rear Panel I/O Ports:
  • 2 RJ45 LAN ports
  • 4x USB rear ports (Total 6 USB 2.0 Compliant / 1.1 Compliant)
  • 1x VGA Port
  • 1 Fast UART 16550 serial ports 1 Header
  • 1 ECP / EEP parallel port
  • Stacked PS/2 keyboard and mouse ports


• Audio:
  • AC97 Audio


• Manageability:
  • ACPI/API Power Management
  • Wake-On-Ring (WOR) header
  • Wake-On-LAN (WOL) header
  • Main Switch Override Mechanism
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, -12V & +5V Standby, VBAT
  • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
  • Power-on mode control for AC power loss recovery
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • PSU I2C temperature sensing logic
  • Thermal Control for 8x fan connectors
  • Thermal Monitor 2 (TM2) support
  • CPU / System Overheat LED
  • Internal/External modem remote ring-on
  • Total of eightr 4-pin fan headers supporting up to 8 fans
  • 8x fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Chassis intrusion detection
  • Chassis intrusion header
  • Super Doctor III, Watch Dog, NMI
  • Optional IPMI (Intelligent Platform Management Interface) 2.0


• Form Factor:
  • Extended ATX
  • 12" x 13.05" (30.5cm x 33.2cm)

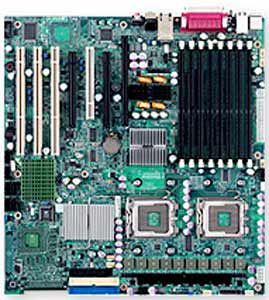

Supermicro X7DAE Specifications

• Model:
  • Supermicro X7DAE Motherboard

• Processor Support:
  • Dual 771-pin LGA Sockets
  • Supports up to two Intel ® 64-bit Xeon ® processor(s) of the same type below:
  • Quad-Core Intel ® Xeon ®Processor 5300 sequence (Clovertown processor) up to 2.66 GHz
  • Dual-Core Intel ® Xeon ®Processor 5100/5000 sequence (Woodcrest/Dempsey processor) up to 3.73 GHz
  • Motherboard PCB revision 2.0 or above is required to support Xeon® 5100 (Woodcrest) processors
  • FSB 1333 / 1066 / 667 MHz system bus

• Chipset:
  • Intel® 5000X (GreenCreek)
  • MCH + PXH-V + ESB2


• Memory:
  • Eight 240-pin DIMM sockets
  • Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory
  • Dual branch memory bus
  • Memory must be populated in pairs
  • Memory Mirroring supported
  • 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs 512 MB, 1GB, 2GB, 4GB 1.8V only, 1.5V(AMB)
  • Corrects single-bit errors, Detects double-bit errors (using ECC memory)
  • Supports Intel ® x4 and x8 Single Device Data Correction (SDDC)


• Expansion Slots:
  • 1 (x16) PCI-e slot
  • 1 (x4) PCI-et (using x16) slot
  • 2x 64-bit 133/100MHz PCI-X (3.3V) slots
  • 1x 64-bit 100MHz PCI-X (3.3V) slot
  • 1x 32-bit 33MHz PCI (5V) slot

• On-Board LAN:
  • Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel ® I/OAT support for fast, scaleable, and reliable networking


• Storage:
  • Intel ESB2 SATA 3.0Gbps Controller
  • RAID 0, 1, 5, 10 support (Windows Only)
  • RAID 0, 1, 10 support (Linux)
  • Six SATA hard drives supported
  • Single EIDE channel supports up to two UDMA IDE devices(IDE-M, IDE-S)
  • Supports UDMA Mode 5, PIO Mode 4, and ATA/100


• IPMI:
  • Support for Intelligent Platform Management Interface v.2.0
  • 200-pin IPMI slot (SIMLP)
  • (Optional: AOC-SIMLP-B(+))
  • (Optional: AOC-SIMLP-3(+)) with 3rd LAN support
  • NOTE: KVM-over-LAN not supported - there is no DVO signal to the IPMI slot


• BIOS:
  • 8Mb Flash EEPROM with Phoenix ® BIOS
  • Plug and Play (PnP)
  • ACPI 1.0, PCI 2.2, DMI 2.3
  • BIOS Rescue Hot Keys
  • PCI-X 1.0
  • SMBIOS 2.3
  • USB Legacy support
  • Hardware BIOS Virus Protection
