• Rear Panel I/O Ports:
  • 1x VGA Port
  • 2 RJ45 LAN ports
  • 2x USB rear ports 2.0 Compliant, 1.1 Compatible
  • 1 Fast UART 16550 serial ports
  • 1 Header for ECP / EEP parallel port
  • Stacked PS/2 keyboard and mouse ports


• On-Board LAN:
  • Intel ® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel ® I/OAT support for fast, scaleable, and reliable networking


• Manageability:
  • ACPI/API Power Management
  • Wake-On-Ring (WOR) header
  • Wake-On-LAN (WOL) header
  • Monitors CPU Core Voltages,+3.3V, +5V, ±12V
  • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
  • Power-on mode control for AC power loss recovery
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 6x fan connectors
  • PSU I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • 6x fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed controlPulse Width Modulated (PWM) fan connectors
  • Internal/External modem remote ring-on
  • Total of six 4-pin fan headers supporting up to 6 fans
  • CPU / System Overheat LED
  • Suspend-State Indicator LED, +5V Standby Alert LED
  • Super Doctor III, Watch Dog / NMI, Optional IPMI 2.0
  • SDDC Support
  • Chassis intrusion detection
  • Chassis intrusion header

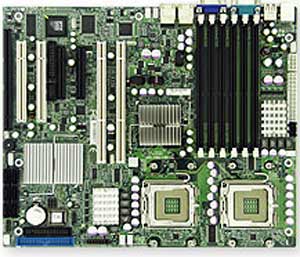

Supermicro X7DVL-E Specifications

• Model:
  • Supermicro X7DVL-E Motherboard

• Processor Support:
  • Dual 771-pin LGA Sockets
  • Supports up to two Intel ® 64-bit Xeon ® processor(s) of the same type below:
  • Quad-Core Intel ® Xeon ®Processor 5300 sequence (Clovertown processor) up to 2.66 GHz
  • Dual-Core Intel ® Xeon ®Processor 5100/5000 sequence (Woodcrest/Dempsey processor) up to 3.73 GHz
  • FSB 1333 / 1066 / 667 MHz

• Chipset:
  • Intel ® 5000V (Blackford VS) chipset
  • MCH + ESB2


• Memory:
  • Six 240-pin DIMM sockets
  • Supports up to 16 GB 667 / 533MHz DDR2 ECC FB-DIMM memory
  • Single or Dual (recommended) channel memory support
  • Dual branch memory bus
  • Memory must be populated in pairs
  • No Memory Mirroring support
  • 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
  • 512 MB, 1GB, 2GB, 4GB, 1.8V only, 1.5V(AMB)
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
  • Supports Intel ® x4 and x8 Single Device Data Correction (SDDC)


• Expansion Slots:
  • 1 (x8) PCI-e slot
  • 1 (x4) PCI-e (using x8) slot
  • 2x 64-bit 133/100MHz PCI-X (3.3V) slots
  • 2x 32-bit 33MHz PCI (3.3V) slots

• Storage:
  • Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S)
  • Supports UDMA Mode 5, Supports PIO Mode 4, Supports ATA 100
  • Intel ESB2 SATA 3.0Gbps Controller
  • Six SATA hard drives supported


• IPMI:
  • Support for Intelligent Platform Management Interface v.2.0
  • 200-pin IPMI slot (SIM1U)
  • (Optional: AOC-SIMLC(+), AOC-SIM1U(+))


• On board Video:
  • ATI ES1000 controller
  • 16 MB of video memory


• BIOS:
  • 8Mb Flash EEPROM with Phoenix ® BIOS
  • Hardware BIOS Virus protection
  • Plug and Play (PnP)
  • ACPI 1.0, DMI 2.1 PCI 2.2
  • SMBIOS 2.3
  • USB Legacy support

• Form Factor:
  • ATX
  • 12" x 10" (30.5cm x 25.4cm)
