Supermicro X7DAL-E motherboard

 Supermicro X7DAL-E Motherboard

Intel Socket LGA 771 Motherboard, with 1 PCI-e x16 Slot/1 PCI-e x4 Slot/4 PCI Slots/1x UIO Slot,on board audio and LAN

6 USB Ports, 3 SATA Ports, IDE and FDD, 6 DIMM Sockets, ATX Form Factor

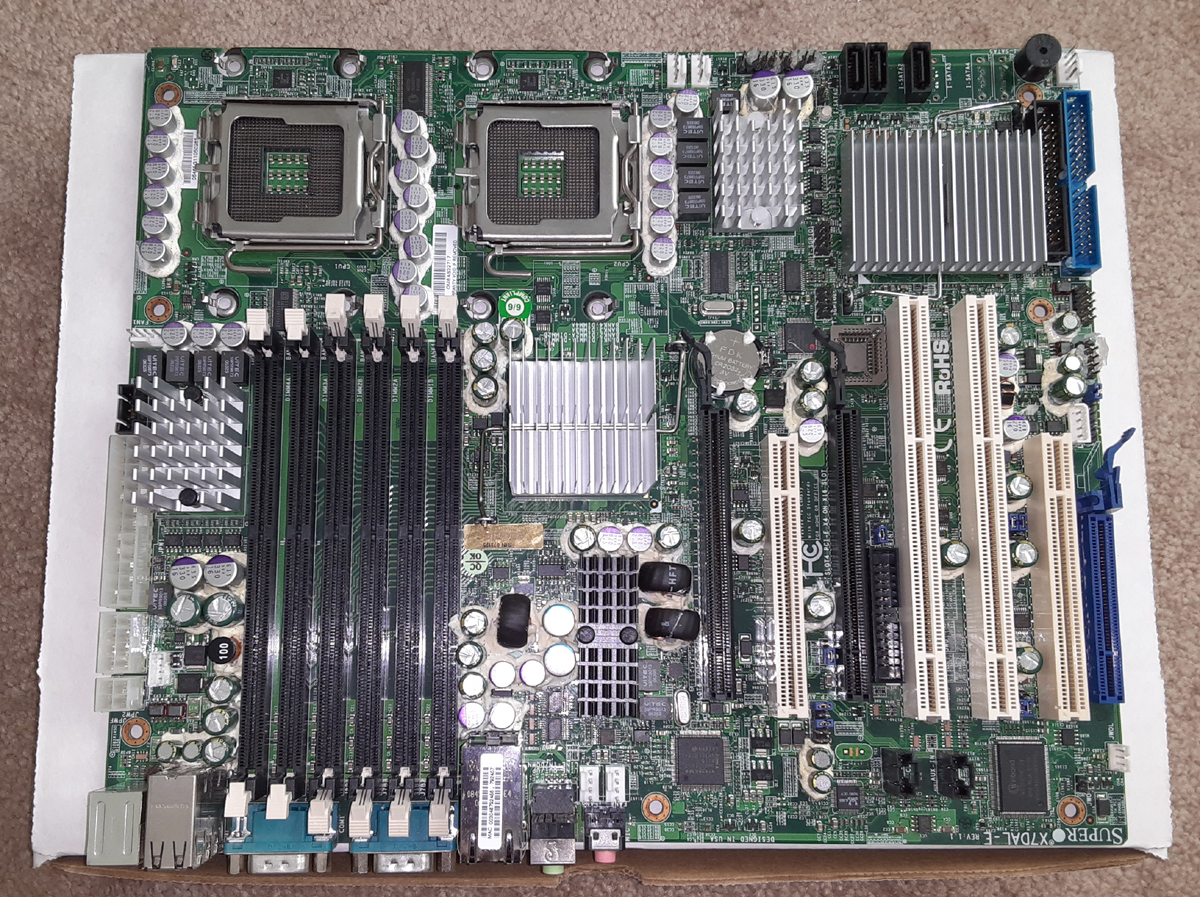

Supermicro X7DAL-E Motherboard

Notice the white paste around all the capacitors etc., It is an add-on for minimizing vibrations if used in an industrial environment.


Motherboard Specifications

• Storage:

  • ESB2 (3Gb/s) SATA Controller
  • RAID 0, 1, 5, 10 support (Windows Only)
  • RAID 0, 1, 10 support (Linux)
  • IDE
  • FDD
• Rear Panel I/O Ports:
  • Super I/O: Winbond 83627HF chip
  • ICS932S401EGLF
  • 3 Serial ATA ports
  • Single EIDE channel supports up to two UDMA IDE devices(IDE-M, IDE-S)
  • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
  • 1 Floppy controller; 1.44 MB, 2.88 MB
  • 2x RJ45 LAN ports
  • 4x USB rear ports
  • 1x USB internal header (for 2 ports)
  • 6 total USB ports, 2.0 Compliant / 1.1 Compliant
  • AC97 Audio
  • Line-in / Line-out / Microphone Ports
  • PS/2 keyboard and mouse ports
  • 1 Fast UART 16550 serial port
  • 1 Fast UART 16550 serial header
  • 1 Parallel Port Header

• Special Features:

  • Supports 64-bit Operating Systems
  • Supports 32-bit Operating Systems
  • Important Chassis Notes: To ensure system stability, a 560W (minimum) ATX power supply
    [4-pin (+12V), 8-pin (+12V) and 24-pin are required]
• Hardware Monitoring:

  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby & +5V Standby, VBAT
  • CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
  • FAN: Total of six 4-pin fans
  • 6x fans with status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Temperature: Monitoring for CPU and chassis, environment
  • CPU thermal trip support
  • Thermal Control for 6x Fan Connectors
  • I²C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • CPU / System Overheat LED
  • Suspend-state Indicator LED
  • +5V Standby Alert LED
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC Support
  • RoHS
  • Environmental Spec.:Operating Temperature: 10 °to 35 °C (50 °to 95 °F)
  • Non-operating Temperature: -40 °to 70 °C (-40 °to 158 °F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5 to 95% (non-condensing)


• Model:
  • Supermicro X7DAL-E Motherboard
• Processor Support:

  • Dual 771-pin LGA Sockets
  • Supports up to two  Intel ® 64-bit Xeon ®processor(s) of the same
  • type below: Quad-Core Intel ® Xeon ®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz
  • Dual-Core Intel ® Xeon ®Processor 5200/5100/5000 sequence (Wolfdale /Woodcrest/Dempsey processor)  up to 3.40 GHz
• Chipset:

  • Intel ® 5000X (GreenCreek) chipset
  • MCH + ESB2
• FSB:
  • 1333 / 1066 / 667 MHz system bus
• Memory:

  • Six 240-pin DIMM sockets
  • Supports up to 24 GB 667 / 533MHz DDR2 ECC FB-DIMM memory
  • Dual branch memory bus
  • Memory must be populated in pairs
  • Memory Mirroring supported
  • 667 / 533MHz FB-DIMM (Fully Buffered DIMM) DDR2 ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
  • 256MB, 512MB, 1GB, 2GB, 4GB
  • 1.8V only
  • Error Detections: Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
  • Supports Intel ® x4 and x8 Single Device Data Correction (SDDC)
• Expansion Slots:

  • 1 (x16) PCI-e slot
  • 1 (x4) PCI-et (using x16) slot
  • 2x 64-bit 133/100MHz PCI-X (3.3V) slots
  • 2x 32-bit 33MHz PCI (5V) slot
  • 1x UIO slot
• On-Board LAN:

  • Intel ® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel ® I/OAT  support for fast, scaleable, and reliable networking
• On-Board Audio:

  • AC97 Audio
• Form Factor/Dimensions:
  • ATX
  • 12" x 10"
• Manageability:

  • SuperDoctor ® III
• Watch Dog
• NMI
• Power Configurations: ACPI Power Management
• Main Switch Override Mechanism
• Wake-On-Ring (WOR) header
• Wake-On-LAN (WOL) header
• Power-on mode for AC power recovery
• Internal/External modem remote ring-on
• BIOS:
  • 8Mb Flash EEPROM with Phoenix ® BIOS
  • Features: Plug and Play (PnP)
  • SMBIOS 2.3
  • DMI 2.3
  • PCI 2.2
  • ACPI 1.0
  • PCI-X 1.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
