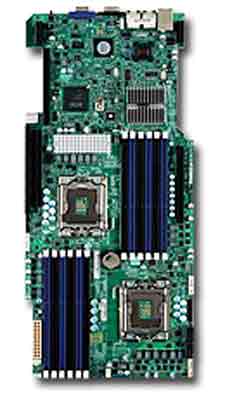

Supermicro X8DTG-DF Motherboard

• Storage:

  • Intel ICH10R SATA 3.0Gbps Controller
  • RAID 0, 1, 5, 10 support (Windows)
  • RAID 0, 1, 10 support (Linux)
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Winbond ® WPCM450 BMC

• Rear Panel I/O Ports:
  • Super I/O: Winbond 83827HG chip
  • Six Serial ATA ports
  • Six SATA hard drives supported
  • 2x RJ45 LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
  • 2x USB rear ports
  • 2x USB internal headers
  • Total 4 USB 2.0 Compliant
  • 1x VGA Port
  • 1x Serial Port

• Hardware Monitoring:

  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
  • FAN: Total of eight fan headers supporting up to 8 fans
  • Eight 4-pin fan headers
  • 8x fans with tachometer status monitoring
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control
  • Monitoring for CPU and chassis environment
  • Thermal Control for 8x fan connectors
  • PECI
  • Chassis intrusion detection
  • Chassis intrusion header
  • Environmental Specs.: Operating Temperature: 10 ° to 35 ° C (50 ° to 95 °F)
  • Non-operating Temperature: -40 ° to 70 ° C (-40 ° to 158 ° F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5 to 95% (non-condensing)


Motherboard Specifications

• Model:
  • Supermicro X8DTG-DF Motherboard


• Processor Support:

  • Dual 1366-pin LGA Sockets
  • Supports up to two  Intel ® 64-bit Xeon ®processor(s) of the same type below:
  • Intel ® Xeon ®Processor 5600 Series (Westmere)
  • Intel ® Xeon ®Processor 5500 Series (Nehalem-EP)
  • QPI: up to 6.4 GT/s

• Chipset:

  • Intel ® 5520 (Tylersburg) chipset
  • ICH10R + IOH-36D

• Memory:

  • 12x 240-pin DIMM sockets
  • Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
  • Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
  • Memory Mirroring supported
  • 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
  • 1GB, 2GB, 4GB , 8GB , 16GB
  • 1.5 V / 1.35V
  • Error Detection: Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
  • Supports Intel ® x4 and x8 Single Device Data Correction (SDDC)

• Expansion Slots:

  • 2 (x16) PCI-E 2.0 or 4 (x8) PCI-E 2.0
  • 1 (x4) PCI-E 2.0 slot

• On-Board Video:
  • Matrox G200eW 16MB DDR2

• On-Board LAN:

  • 2x Intel ® 82576 Gigabit Ethernet Controllers
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)

• Form Factor/Dimensions:
  • Proprietary
  • 16.64" x 7.71 " (42.26cm x 19.581cm)
• Manageability:

• IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
• SuperDoctor ® III
• Power Configuration: ACPI / ACPM Power Management
• BIOS:
  • 32Mb SPI Flash EEPROM with AMI ® BIOS
  • Features: Plug and Play (PnP)
  • PCI 2.2
  • ACPI up to 3.0
  • USB Keyboard support

• Special Features:
  • Important Chassis Notes: To support the new generation Intel ® Xeon ® processor-based motherboards, a Revision K  chassis is recommended for most models. Please talk to your sales representative or follow the link for details.
