Tyan i7520

Tyan i7520

Part # 108367

Condition : New- Retail Box

| Warranty: 365 days

Brand : Tyan
| Log in to add review

Rate this product:


Loading...

Click "Notify" to get an alert when it's available

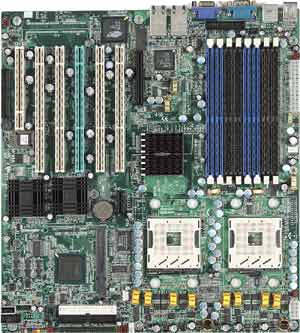

Tyan Thunder i7520 Socket 604 Motherboard

Tyan Thunder i7520 Motherboard

Dual 604 Socket for Pentium Xeon, Intel E7520, 8 DDR, 5 PCI-X, 1 PCI Express 8x, 1 PCI, VIDEO, LAN, USB, IDE, RAID Support.

Tyan Thunder i7520 Dual 604 Socket for Pentium Xeon, Intel E7520, 8 DDR, 5 PCI-X, 1 PCI Express 8x, 1 PCI, VIDEO, LAN, USB, IDE, RAID Support.

  • Internal I/O Interface:
    • One floppy connector for up to two drives
    • Six USB 2.0 ports (two rear, four front via cable
    • Two 9-pin UART serial support
    • One 25-pin ECP/EPP parallel header
    • PS/2 mouse and keyboard stacked connectors

  • Storage/RAID:
    • Provides two PCI bus master channels for up to four UDMA IDE devices
    • Supports UDMA 100/66/33 IDE & ATAPI devices
    • Provides independent DMA operation on 2 ports
    • Data transfer rates up to 1.5 GB/sec.
    • Supports RAID 0 or 1 (with 82801 ER/ICH5R chip)
    • Adaptec's driver and option ROM
  • On-Board Video:
    • ATI ® RAGE XL PCI graphics controller
    • 8MB Frame Buffer of video memory

  • Manageability:
    • ADI ADT7463 H/W Monitor IC
    • Six 3-pin system fan headers
    • Three 4-pin (3-pin compatible) fan connectors
    • Tachometer monitoring and PWM control
    • One 2-pin chassis intrusion header
    • SMBus connectors
    • Temperature and voltage monitoring
    • Watchdog timer; optional TYAN M3289 (Zircon) or M3290 (Zircon-UL) SMDC (Server Management Daughter Card) IPMI 1.5 via a 2x25 header

Thunder i7520 Specifications

  • Model:
    • Thunder i7520
  • Processor Support:
    • Dual mPGA604 ZIF sockets; onboard EVRD 10.1
    • Supports up to two Intel Xeon processors
      "Nocona" processors supported
    • Intel ® EM64T support
    • Front-Side Bus support for 800MHz
  • Chipset:
    • Intel ® E7520 ("Lindenhurst") chipset
    • MCH North Bridge and ICH5R South Bridge chips
    • Two PXH I/O Bridge chips
    • Winbond W83627HF Super I/O chip

  • FSB:
    • 800MHz

  • Memory:
    • Eight DDR-333/266 DIMM sockets
    • Supports up to 16GB of Registered ECC memory

  • Expansion Slots:
    • Three PCI-X 133/100/66 MHz slots
    • One PCI-X 100/66 MHz slot
    • One PCI-X 66 MHz slot
    • One (x8) PCI-Express slot
    • One 32-bit/33 MHz PCI 2.2 slot
    • Five PCI-X, one PCI-Express (x8), and one PCI
      independent buses; total of seven usable slots
    • One proprietary 200-pin TARO SO-DIMM
      connector (on PCI-X bus)
  • On-Board LAN:
    • Dual 10/100/1000 GbE LAN
    • Intel 82546GB controller
    • Supports ASF 1.0 or IPMI 1.5
    • Two RJ45 connectors with LEDs

  • Form Factor:
    • Extended ATX (12" x 13"; 305mm x 330mm)
    • One EPS ATX/12V 24-pin system power connector
    • One SSI EEB v3.51 compliant 8-pin split CPU power connector
    • Serial (1), parallel (1) and VGA (1) connectors
    • Stacked USB (2) ports; RJ-45 connectors
    • Stacked PS/2 keyboard and mouse connectors

  • BIOS:
    • Phoenix BIOS 8 Mb flash ROM
    • Supports ACPI Power Management: S1, S4 & S5
    • Auto detection of memory size
    • Auto configuration of IDE hard disk types
    • User settings of hardware monitoring
    • Multiple boot options including PXE
    • Supports console re-direction
