• Audio:
  • 6-channel AC'97 audio CODEC (ALC650)
  • Line-in, Line-out, Mic-in rear jacks
  • One 4-pin CD-ROM audio header (ATAPI)
  • One 4-pin auxiliary audio header (ATAPI)

• Hardware Monitoring:
  • Total three (3) 3-pin fan headers
  • 3-pin Wake-on-LAN (WOL) header
  • POST code built-in display (7-segment LED)

• Rear Panel I/O Ports:
  • Stacked parallel (one), serial (two) connectors
  • Two 9-pin serial ports
  • Audio Line-in, Line-out, Mic-in jacks
  • RJ-45 LAN connector with LEDs
  • PS/2 keyboard and mouse ports
  • Stacked USB (two)


• Internal I/O Interface
  • One floppy connector supports up to two drives
  • Two USB 2.0 ports
  • One IrDA connector

• LAN:
  • VIA VT 6103 10/100 PHY from VIA 8235 One RJ-45 LAN connector with LEDs


• Regulatory:
  • FCC DoC (Declaration of Conformity) certified
  • European CE (Declaration of Conformity)

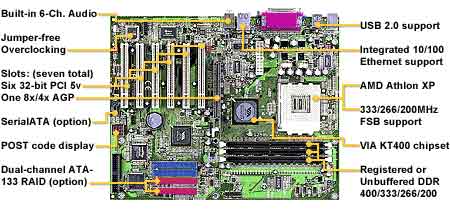

Motherboard Specifications

• Model:
  • Tyan Trinity KT400 S2495AN


• Processor:
  • mPGA462 ZIF socket
  • Supports one AMD ® Athlon XP or Duron
    processor
  • Front-Side Bus support for 333/266/200MHz


• Chipset:
  • VIA KT400 North Bridge
  • VIA 8235 South Bridge
  • Winbond W83697HF LPC I/O chip


• Memory:
  • Three 184-pin 2.5-volt DDR DIMM sockets
  • Supports up to 3GB* of Unbuffered or Registered DDR 400/333/266/200
  • DDR400 limited to 1 DIMM
  • DDR333 limited to 2 DIMM


• IDE Controllers:
  • Provides two PCI bus master channels for up to four Enhanced IDE (EIDE) devices
  • Support for UDMA133/100/66 IDE drives and ATAPI compliant devices

• Expansion Slots:
  • One 8X/4X AGP slot (1.5V)
  • Six 32-bit 33MHz (5V) PCI slots - PCI v2.2 compliant
  • Total of seven usable slots

• BIOS:
  • Award BIOS 4Mbit Flash ROM
  • Supports APM 1.2, ACPI 1.0b, PnP, DMI 2.0,
    WfM 2.0
  • Jumper-free overclocking and overvoltage
    for CPU, memory, and AGP buses

• Form Factor:
  • ATX footprint (12" x 9.6", 304.8x243.84mm)
  • ATX power connector
