Jabsco 12V 6 GPM 70 PSI HotShot HD6 Heavy Duty Washdown Pump

Part # 571600

Condition : New- Retail Box | Warranty : 30 days

Brand : Jabsco
0 review | Add Your Review

$284.61

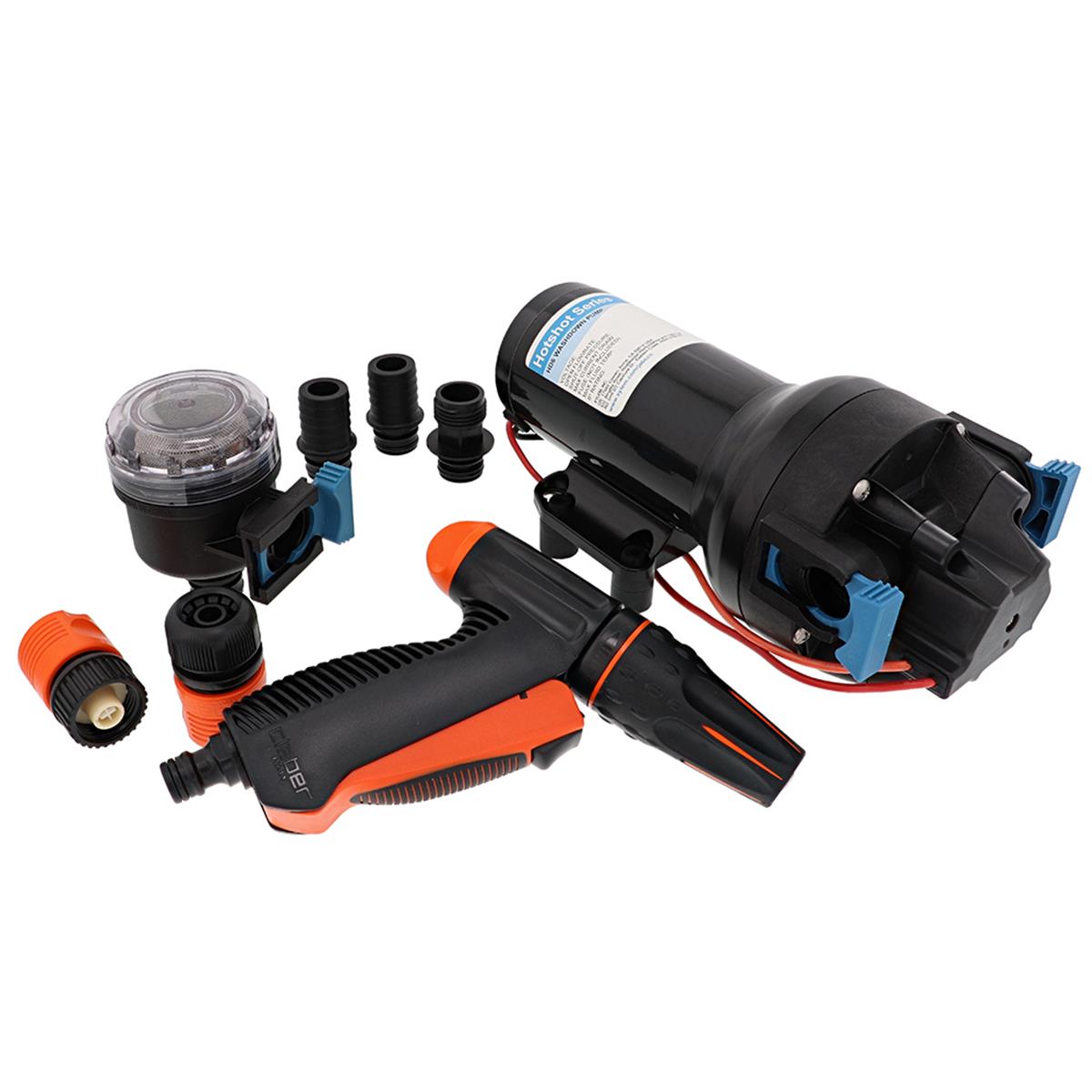

Jabsco P601J-219N-3A 12V 6 GPM 70 PSI HotShot HD6 Heavy Duty Washdown Pump

Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits.

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion.

Features
  • Co-molded diaphragm technology for long life and durability
  • HD models feature heavy duty, motors and cast aluminum lower housings which allow for long-life, even at high pressures
  • Efficient and quiet operation
  • Integrated, sealed pressure switch for on-demand operation
  • Self-priming allows for installation versatility
  • Can run dry without damage
  • Quick connect ports for ease of installation, servicing, and maintenance
  • Vibration dampening mounting feet
  • Full kit versions which include 25' (76m) hose coil
  • Motor design Brushed, permanent magnet TENV
  • Pumphead upper housing material Glass fiber reinforced polypropylene
Specifications
  • Diaphragm: Co-molded TPV
  • Check valves: EPDM
  • Max inlet pressure: 70 PSI (2.1 Bar)
  • Fluid temperature range: 32°F 140°F (0°C 60°C)
  • Dry self-priming capability: 7ft min (2.13m/min)
  • Certifications: CE, ISO8846, RCM
  • Ingress Protection: IPX6
  • Volt: 12V
  • Weight: 10 lbs
