asRock K7S41GX2 Motherboard
AMD Socket 462 Motherboard, with 1 x AGP 8X/4X slot/1 x AMR slot/2 x
PCI slots, on board audio, video and LAN, 4 USB Ports, 2 ATA 133
IDE Ports, 2 DIMM Slots and Micro ATX Form Factor
|

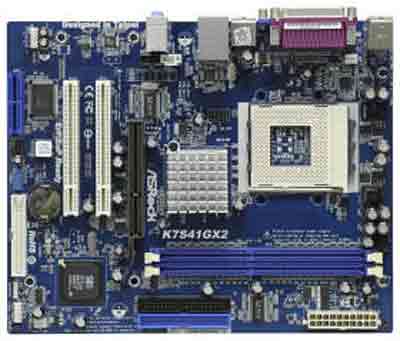

asRock K7S41GX2 Motherboard
- Storage:
- 2 x ATA133 IDE connectors (support 4 x IDE devices)
- Rear Panel I/O Ports:
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Parallel Port (ECP/EPP Support)
- 1 x Serial Port: COM1
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- Audio Jack: Line in / Front Speaker / Microphone
- Internal I/O
Interface:
- 2 x ATA133 IDE connectors (support 4 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- CPU/Chassis FAN connector
- 20 pin ATX power connector
- CD in header
- AUX in header
- Front panel audio connector
- 1 x USB 2.0 header (supports 2 USB 2.0 ports)
- Special Features:
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Support C.D: Drivers, Utilities, AntiVirus Software
(Trial Version)
- O.S: Microsoft ® Windows ® 2000 / XP compliant
- Certifications: FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
|
Motherboard Specifications
- Model:
- asRock K7S41GX2 Motherboard
- Processor Support:
- Socket 462 for AMD Sempron / Athlon / Athlon XP / Duron
Processors
- FSB 333/266/200 MHz
- Chipset:
- Northbridge: SiS ® 741GX
- Southbridge: SiS ® 963L
- Memory:
- 2 x DDR DIMM slots
- Supports DDR 400/333/266 non-ECC, un-buffered memory
- Max. capacity of system memory: 2GB
- Expansion Slots:
- 1 x AGP 8X/4X slot
- 1 x AMR slot
- 2 x PCI slots
- On-Board Video:
- Integrated Mirage Graphics
- DirectX 7
- Max. shared memory 128MB
- Supports D-Sub with max. resolution up to 2048x1536 @
75Hz
- On-Board Audio:
- 5.1 CH AC'97 Audio (C-Media CMI9739A Audio Codec)
- On-Board LAN:
- Realtek LAN PHY RTL8201EL
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
- Form
Factor/Dimensions:
- Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8
cm
- Hardware Monitoring:
- Chassis Temperature Sensing
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
- Accessories:
- Quick Installation Guide, Support CD, I/O Shield
- BIOS:
- ACPI 1.1 Compliance Wake Up Events
|
