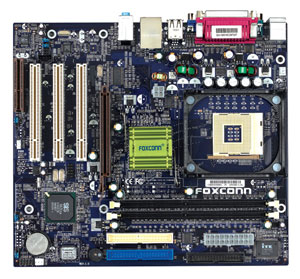

Foxconn 650M02-G-6L

Part # 105506

Condition : Refurbished | Warranty : 30 days

Brand : Foxconn
0 review | Add Your Review

$40.00

Foxconn 650M02-G-6L Pentium 4 socket 478 motherboard with audio, video and LAN - for sale - specifications, price and availability

Foxconn 650M02-G-6L

Pentium 4 socket 478 motherboard with audio, video, LAN and 6 USB ports


Foxconn 650M02-G-6L Pentium 4 socket 478 motherboard with audio, video and LAN



  • Rear Panel I/O Ports:
    • 1 x PS/2 keyboard
    • 1 x PS/2 mouse
    • 1 x RJ45 (LAN)
    • 4 x USB 2.0 (2 additional through header on motherboard)
    • 1 x line-in/line-out/mic (audio)
    • 1 x parallel (SPP/ECP/EPP)
    • 1 x COM (16550-compatible UART)
    • 1 x VGA (integrated video)

  • Internal I/O Interface:
    • 1 x floppy disk drive
    • Front audio header
    • 1 x S/PDIF (coax out) header
    • 1 x USB 2-port header, ver. 2.0

  • Overclocking Features:
    • Adjustable memory timing

  • Special Features:
    • Wake-on-LAN (WOL), suspend-to-RAM (STR, S3), suspend-to-disk (STD, S4), SuperUtilities - SuperBoot, SuperBIOS-Protect, SuperStep, SuperLogo, and SuperUpdate
  • BIOS:
    • 2Mb flash EEPROM w/ PnP, ACPI, WfM, DMI 2.0,
  • Form Factor:
    • microATX, 9.6'' x 9.6''

Motherboard Specifications

  • Model:
    • 650M02-G-6L


  • Processor Support:
    Celeron Socket 478 FSB 400. 1.7GHz to 2.8GHz
    P4 socket 478 Willamette core FSB 400. 1.7 GHz to 1.8 GHz
    P4 socket 478. Norwood core
    • FSB 400. P4 1.8 to 2.6 GHz
    • FSB 533. P4 2.26 to 2.8GHz
    Processors not supported:
    • Celeron D
    • P4 with Prescott Core
    • P4 higher than 2.8 in FSB 533
    • P4 with 1MB cache

  • Chipset:
    • SiS650GX + 962
  • FSB:
    • 533/400MHz
  • Memory:
    • Single channel, unbuffered, 2.5V DDR200/266
    • 2 184-pin DIMM sockets, max 2GB
  • Expansion Slots:
    • 1 x AGP 4X
    • 3 x PCI
    • 1 x CNR
  • On-Board Audio:
    • Integrated, 5.1 channel AC97 (Realtek)

  • On-Board Video:
    • Integrated SiS graphics controller. Supports up to 64MB shared system memory
  • On-Board LAN:
    • Integrated Fast Ethernet (10/100) MAC + PHY (Realtek)
  • IDE/ATA support:
    • 2 x ATA/133
