Amptron / Eurone PM-599LMR

107398 - Micro ATX Socket-7 motherboard. 1 x ISA, 2 x PCI and 3 DIMM slots. On-Board audio and video. Motherboard only. No manuals, cables or drivers.
Condition: New- Bulk Pack, Warranty: 90 days
by Amptron / Eurone
1 review | Add Your Review


107398 - PM-599LMR
Micro ATX Socket-7 motherboard. 1 x ISA, 2 x PCI and 3 DIMM slots. On-Board audio and video. Motherboard only. No manuals, cables or drivers.

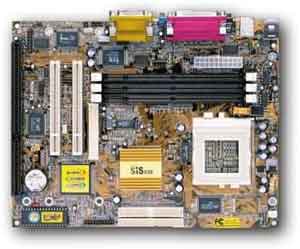

PM-599LMR Motherboard

PM-599LMR Motherboard


Micro ATX Socket-7 One 8/16-bit ISA Three  168-pin DIMM slots Built-in virus protection motherboard

  • On-Board Audio:
    • eets PC98 audio specification
    • Full duplex playback and recording with built-in 16-bit CODEC
    • HRTF 3D professional audio supports both Direct Sound 3D ® and A3D ® compatible interfaces plus support for 4- channel speakers
    • Drivers support Windows 3.1/95/98/NT 4.0 ¨ Built-in 32 ohm earphone buffer and 3D surround
    • Provides MPU-401 Game/MIDI port and legacy Sound Blaster 16 support
    • Downloadable Wave-table Synthesizer supports Direct Music ®
    • Digital Audio Interface with 24-bit stereo, 44KHz sampling rate and measured 120dB audio quality
    • Stereo Mixer supports analog mixing from CD-Audio, Line-In, and digital mixing from voice, FM/Wave-table and digital CD-Audio
  • On-Board Video:
    • Onboard 64-bit 3D AGP Graphics Accelerator
    • Complies with AGP Ver.1 with 66/133 MHz operation
    • Shared memory architecture allows a maximum of 8 MB main memory to act as frame buffer
    • Supports high resolutions up to 1600 x 1200 pixels
  • BIOS:
    • Onboard Flash ROM
    • Provides plug and play function for automatic CPU and board configuration
    • Supports plug and play configuration of peripheral devices and expansion cards
    • Built-in virus protection using Trend™s ChipAway Virus which ensures that the entire boot process is virus protected.
  • Hardware Monitoring:
    • Built-in hardware monitoring for CPU temperature and fan speeds 4
    • Supports AMI™s Desktop Client Manager (ADCM)
  • Manageability:
    • Provides ATX power connector
    • Support for Power button/Suspend Switch, and Keyboard Power On/Off (needs Win98 keyboard)
    • Supports Wake on Modem, Wake on LAN and Wake on Alarm

Motherboard Specifications

  • Model:
    • PM-599LMR
  • Processor Support:
    • Supports all recent socket-7 processors including Intel P55C (Pentium MMX), Cyrix/IBM 6x86L/6x86MX/MII, AMD K6/K6-2, and IDT C6 CPUs
    • Supports socket-7 processors with system bus frequencies of 60/66/75/83/95/100 MHz
    • CPU Plug and Play support let the firmware automatically configure the CPU
  • Chipset:
    • SiS530 chipset
  • OnboarCache:
    • 512K/1 MB external Level 2 cache memory is provided onboard
  • Memory:
    • Three DIMM slots for 3V SDRAM 168-pin memory modules
    • Support for 66 MHz and 100 MHz memory bus
    • Maximum installed memory can be 3 x 256 MB = 768 MB Expansion Slots
  • Expansion Slots:
    • Two 32-bit PCI slots
    • One 8/16-bit ISA slots
  • On-Board LAN:
    • Onboard 10BaseT/100BaseTX LAN Adapter
    • LAN controller integrates Fast Ethernet MAC and PHY compliant with IEEE802.3u 100BASE-TX, 10BASE-T and ANSI X3212 TP-PMD standards
    • Compliant with ACPI 1.0 and the Network Device Class Power Management 1.0
    • High Performance provided by 100 Mbps clock generator and data recovery circuit for 100 Mbps receiver
  • Rear Panel I/O Ports:
    • Provides PC99 Color Connector for easy identification of peripheral devices
    • Floppy disk drive port with 1Mb/s transfer rate
    • One serial port with 16550-compatible fast UART
    • One parallel port with support for ECP and EPP
    • Two USB ports & two PS/2 ports
    • One optional infrared port
  • Internal I/O Interface:
    • Primary and Secondary PCI IDE channels
    • Support for PIO (programmable input/output) modes
    • Support for Bus mastering and UltraDMA 33/66 modes
  • Form Factor:
    • Micro ATX form factor9.61'' x 7.48'' (24.4cm x 19cm)
