Asus M2A-VM(GREEN)

107963 - Asus M2A-VM Motherboard, Supports AMD Athlon 64X2 / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2, AMD 690G chipset, 1 x PCI Express x16, 1 x PCI-E x1, 2 x PCI 32-bit, DDR2, LAN, USB, IDE, SATA2, RAID, Video (DVI & VGA), Audio, SPDIF, Micro-ATX Form Factor
Condition: New- Retail Box, Warranty: 1 year
by Asus
1 review | Add Your Review

$89.89

107963 - M2A-VM(GREEN)
Asus M2A-VM Motherboard, Supports AMD Athlon 64X2 / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2, AMD 690G chipset, 1 x PCI Express x16, 1 x PCI-E x1, 2 x PCI 32-bit, DDR2, LAN, USB, IDE, SATA2, RAID, Video (DVI & VGA), Audio, SPDIF, Micro-ATX Form Factor

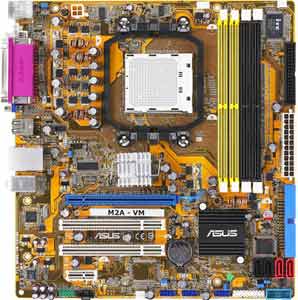

Asus M2A-VM Motherboard

Asus M2A-VM Motherboard

Supports AMD Athlon 64X2 / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2, AMD 690G chipset, 1 x PCI Express x16, 1 x PCI-E x1, 2 x PCI 32-bit, DDR2, LAN, USB, IDE, SATA2, RAID, Video (DVI & VGA), Audio, SPDIF, Micro-ATX Form Factor

Asus M2A-VM Motherboard, Supports AMD Athlon 64X2 / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2, AMD 690G chipset, 1 x PCI Express x16, 1 x PCI-E x1, 2 x PCI 32-bit, DDR2, LAN, USB, IDE, SATA2, RAID, Video (DVI & VGA), Audio, SPDIF, Micro-ATX Form Factor

  • Internal I/O Interface:
    • 1 x Floppy connector
    • 3 x USB 2.0/1.1 headers
    • 1 x S/PDIF output connector
    • 1 x COM connector
    • 4 x SATA2 ports
    • 1 x IDE Port
  • Rear Panel I/O Ports:
    • 1 x PS/2 Keyboard
    • 1 X PS/2 Mouse
    • 1 x Parallel
    • 1 x DVI
    • 1 x VGA port
    • 1 set 5.1 channel Audio Jack (3 jacks)
    • 4 x USB 2.0/1.1 ports
    • 1 x RJ 45 Port

  • On-Board LAN:
    • PCIe Gb LAN

  • Power Connector :
    • 1 x 24pin main power
    • 1x 4pin CPU power

  • BIOS:
    • 8Mb Flash ROM, Award BIOS, PnP, DMI2.0, WfM2.0, SMBIOS 2.3
    • WfM 2.0, DMI 2.0, WOL by PME, WOR by PXE, WOR by PME

Asus M2A-VM Motherboard

  • Model:
    • Asus M2A-VM Motherboard
  • Processor Support:
    • Supports AMD Athlon 64x2 / Athlon 64FX / Athlon 64 / Sempron
    • AMD 64 architecture enables simultaneous 32-bit and 64-bit computing
    • Supports AMD Cool'n'Quiet Technology
    • AMD Live! Ready
    • Socket AM2

  • FSB:
    • 2000/1600 MTS

  • Chipset:
    • AMD 690G
  • Memory:
    • 4 x 240-pin DDR2 DIMM socket support up to 8 GB
    • Support Dual Channel DDR2 800/667/533 Mhz
    • ECC and non-ECC, un-buffered

  • Expansion Slots:
    • 1 x PCI Express x16
    • 1 x PCI-E x1
    • 2 x PCI 32 Bits

  • Storage:
    • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    • 4 x Serial ATA 3Gb/s supporting RAID 0, RAID 1

  • Audio:
    • Realtek ALC883 6-Channel audio CODEC
    • Support Jack-Sensing Multi-streaming and S/PDIF out interface

  • Video:
    • Integrated ATI Radeon X1250-based graphics
    • Supports DVI-D with max. resolution 2560x1600 (@ 60Hz)(It may not display 1080p smoothly when playing HD DVD and Blu-ray Disc due to current version player limit)
    • Supports RGB with max. resolution 2048 x 1536 (@85Hz)
    • Dual VGA output support:RGB & DVI
    • Maximum shared memory of 1024 MB

  • Form Factor:
    • uATX Form Factor
    • 9.6" x 9.0" (24.5cm x 22.9cm)
