Abit SG-95

108343 - Abit SG-95 Socket LGZ775 Motherboard, SiS 662 Chipset, 800 MHz FSB Only, DDR2 Single Channel DIMMs, 1 PCI-E X16, 1 PCI-E X1, 2 PCI, On-board video, audio, and LAN, Micro ATX Form Factor
Condition: New- Retail Box, Warranty: 1 year
by Abit
1 review | Add Your Review

$73.25

108343 - SG-95
Abit SG-95 Socket LGZ775 Motherboard, SiS 662 Chipset, 800 MHz FSB Only, DDR2 Single Channel DIMMs, 1 PCI-E X16, 1 PCI-E X1, 2 PCI, On-board video, audio, and LAN, Micro ATX Form Factor

Abit SG-95 Socket LGZ775 Motherboard. Specifications, price and availability 54110725

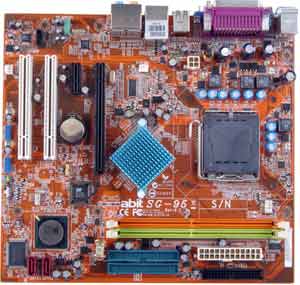

Abit SG-95 Motherboard



Abit SG-95 Socket LGZ775 Motherboard, SiS 662 Chipset, 800 MHz FSB Only

  • Storage:
    • 2 x Ultra DMA 133/100/66/33 IDE Connector
    • 2 x SATA 1.5 Gb/s connectors support SATA RAID 0/1/JBOD
  • Rear Panel I/O Ports:
    • 1 x PS/2 Keyboard, 1 x PS/2 Mouse
    • 1 x COM port, 1 x Parallel port
    • 1 x VGA Port
    • 7.1 CH Audio connector (Front, Line-in, MIC-in, Center/Subwoofer, Surround, Rear Surround)
    • 4 x USB2.0
    • 1 x RJ-45 LAN Connector
  • Internal I/O Interface:
    • 1 x Floppy Port supports up to 2.88MB
    • 2 x USB2.0 header
    • 1 x FP-Audio, 1 CD-in connector
  • Industrial Standard:
    • RoHS Compliancy
  • Form Factor:
    • mATX form factor
    • 224 x 245mm
    • PCB Color: Orange

Motherboard Specifications

  • Model:
    • SG-95
  • Processor Support:
    • Intel LGA775 processors with 800MHz FSB
    • Support Pentium D & Pentium 4 & Celeron & Celeron D CPU
    • Support 2006FMB Intel Conroe Processors
    • Supports Intel Hyper-Threading / EM64T / EIST Technology
  • Chipset:
    • Due to SiS 662 chipset specification, SG-95 can only support CPU of FSB 800MHz
  • FSB:
    • FSB 800MHz only
  • Memory:
    • 2 X 240-pin DIMM sockets
    • Max. memory capacity 2GB
    • Supports Signal Channel 64bit mode DDR2 667/533 Un-buffered Non-ECC memory
  • Expansion Slots:
    • 1 x PCI-E X16
    • 1 x PCI-E X 1
    • 2 x PCI
  • On-Board Video:
    • Integrated SIS Mirage 1 Graphics GPU high performance 256-bit 3D engine and 2D Accelerator
  • On-Board Audio:
    • On board 7.1 CH HD Audio by ALC883
  • On-Board LAN:
    • On board 10/100 LAN
