Asus K8V-X

108346 - Socket 754 Motherboard AMD 64 with Integrated Audio, LAN, USB, 1 AGP8X, 5 PCI, VIA K8T800, 3 PC3200/PC2700/PC2100, RAID/SATA Support.
Condition: New- Retail Box, Warranty: 1 year
by Asus
1 review | Add Your Review

$0.00

108346 - K8V-X
Socket 754 Motherboard AMD 64 with Integrated Audio, LAN, USB, 1 AGP8X, 5 PCI, VIA K8T800, 3 PC3200/PC2700/PC2100, RAID/SATA Support.

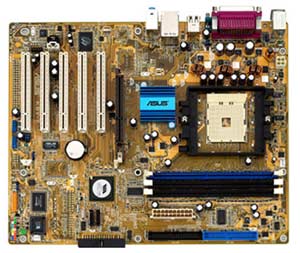

Asus K8V-X Socket 754 Motherboard

Asus K8V-X Motherboard

Socket 754 Motherboard AMD 64 with Integrated Audio, LAN, USB, 1 AGP8X, 5 PCI, VIA K8T800, 3 PC3200/PC2700/PC2100, RAID/SATA Support.



Asus K8V-X Socket 754 Motherboard AMD 64 with Integrated Audio, LAN, USB, 1 AGP8X, 5 PCI, VIA K8T800, 3 PC3200/PC2700/PC2100, RAID/SATA Support.

  • Internal I/O Interface:
    • 2x USB2.0 connector supports additional 4 USB 2.0 ports
    • Intel Front Panel Audio connector
    • 20-pin ATX power connector
    • 4-pin ATX 12V power connector
    • CPU /chassis fan connectors
    • CD/ AUX audio in
    • GAME port connector
    • SPDIF OUT connector

  • Storage/RAID:
    • South Bridge
    • 2 x ATA133
    • 2 x SATA, RAID0, RAID1
  • BIOS:
    • 4Mb Flash EEPROM
    • AMI BIOS
    • enhanced ACPI
    • DMI
    • PnP
    • ASUS EZ Flash
    • ASUS Mylogo2
    • SM BIOS 2.3
    • Crash-Free BIOS2

  • Accessories:
    • User's manual
    • UltraDMA cable
    • FDD cable
    • IDE cable
    • SATA cables
    • I/O shield



ASUS K8V-X SE Specifications

  • Model:
    • Asus K8V-X
  • Processor Support:
    • One 754-pin socket supports AMD Sempron CPU or Athlon 64 processor
  • Chipset:
    • VIA K8T800
    • VIA VT8237R

  • FSB:
    • 800MHz

  • Memory:
    • 3 x 184-pin DIMM Sockets support max. 2GB un-buffered and non-ECC PC3200/PC2700 / PC2100 DDR SDRAM memory

  • Expansion Slots:
    • 1 x AGP 8X
    • 5 x PCI

  • On-Board Audio:
    • ADI AD1980
    • 6-channel CODEC
    • S/PDIF out interface
  • On-Board LAN:
    • Marvell 88E 8001 GbLAN


  • Rear Panel I/O Ports:
    • 1xSerial
    • 4xUSB
    • 1xParallel
    • 1xRJ45
    • 1 x PS/2 Keyboard
    • 1 x PS/2 Mouse
    • 1x Audio I/O
    • 1x S/PDIF OUT
  • Form Factor:
    • ATX
    • 12" x 9.6" (30.5cm x 24.5cm)

  • Manageability:
    • WOL by PME
    • WOR by PME

  • Support CD:
    • drivers
    • ASUS PC Probe
    • Anti-virus software (OEM Version)
