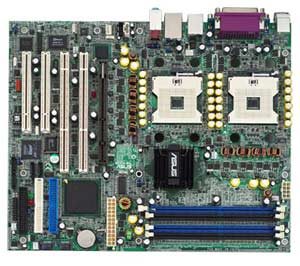

Asus NCCH-DL Motherboard
XEON Processor Motherboard Intel XEON Dual Processor with integrated LAN, USB, 2 PCI-X,
2 PCI, Intel 82875P, 4 DDR400 Un-Buffered ECC, SATA Support. |
|
- Internal I/O Interface:
- 1 x Floppy Connector
- SSI 24-pin
- 12V 8-pin
- 1 x AGP Slot
- 6 x Fan
- 1 x SMBus
- 1 x Chassis Instruction
- Storage/RAID:
- 4 x SATA: Promise PDC20319
- 2 x Intel ® 6500ESB
- EMI:
- US (FCC, CFR47 Part 15, Class B)
- Europe (CE, EN55022 & EN55024)
- Australia (C-TICK)
- Taiwan (BSMI)
- Environment:
- Operation temperature: 10 ºC ~
35 ºC
- No operation temperature: -40 ºC
~ 70 ºC
- No operation humidity: 20% ~ 90% (No condensing)
|
ASUS NCCH-DL Specifications
- Processor Support:
- Intel Xeon with 800 / 533FSB, 3.6GHz+
- Core Logic:
- Intel 82875P
- Intel 6300ESB
- FSB:
- Memory:
- Dual Channel DDR400
- ECC Un-buffered
- Max up to 4GB / 4 slots
- Expansion Slots:
- 2 x 32bit/ 33MHzPCI
- 2 x 64bit/ 66MHz PCI-X
- On-Board LAN:
- Intel PRO/1000 CT Network Connection
- Rear Panel I/O Ports:
- 2 x External Serial Port
- 4 x External USB Port
- 1 x IEEE1394
- 1 x Mic/Line-in/Line-out
- 1 x RJ-45
- PS/2 Mouse/Mouse
- Form Factor:
|
