Asus A8N32-SLI

108369 - Socket 939 Motherboard AMD 64 Architecture with integrated Audio, LAN, USB, 2 PCI Express x46, 3 PCI, 1 PCI Express x4, NVIDIA nForce4 SLI X16 (NVIDIA nForce SPP 100 / NVIDIA nForce4 SLI), 4 DDR400/333/266 Un-Buffered ECC, SATA/RAID Support
Condition: New- Retail Box, Warranty: 1 year
by Asus
1 review | Add Your Review

$0.00

108369 - A8N32-SLI
Socket 939 Motherboard AMD 64 Architecture with integrated Audio, LAN, USB, 2 PCI Express x46, 3 PCI, 1 PCI Express x4, NVIDIA nForce4 SLI X16 (NVIDIA nForce SPP 100 / NVIDIA nForce4 SLI), 4 DDR400/333/266 Un-Buffered ECC, SATA/RAID Support

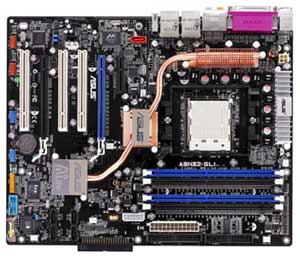

Asus A8N32-SLI Socket 939 Motherboard

Asus A8N32-SLI Motherboard

Socket 939 Motherboard AMD 64 Architecture with integrated Audio, LAN, USB, 2 PCI Express x46, 3 PCI, 1 PCI Express x4, NVIDIA nForce4 SLI X16 (NVIDIA nForce SPP 100 / NVIDIA nForce4 SLI), 4 DDR400/333/266 Un-Buffered ECC, SATA/RAID Support.



Asus
A8N32-SLI Socket 939 Motherboard AMD 64 Architecture with integrated Audio, LAN, USB, 2 PCI Express x46, 3 PCI, 1 PCI Express x4 NVIDIA nForce4 SLI X16 (NVIDIA nForce SPP 100 / NVIDIA nForce4 SLI), 4 DDR400/333/266 Un-Buffered ECC, SATA/RAID Support.

  • Internal I/O Interface:
    • 6 x USB 2.0/1.1
    • 1 x Floppy disk drive connector
    • 2 x IDE connector
    • 5 x SATA connectors
    • 1 x CPU / 2 x Chassis / 2 x Chipset / 1 x Power Fan connectors
    • 1 x GAME / MIDI connector
    • 2 x IEEE1394a connector
    • 1 x COM connector
    • Front panel audio connector
    • Chassis Intrusion connector
    • CD / AUX audio in
    • 24-pin ATX Power connector
    • 4-pin ATX 12V Power connector
    • 4-pin EZ Plug power connector

  • Storage/RAID:
    • NVIDIA nForce4 SLI X16 Southbridge supports
      •  2 x Ultra DMA 133 / 100 / 66 / 33
      •  4 x Serial ATA 3 Gb/s
      •  NV RAID: RAID 0, 1, 0+1, 5 and JBOD on Serial ATA drives
    • Silicon Image 3132 SATA controller supports
      • 1 x Internal Serial ATA 3 Gb/s hard disk
      • 1 x External Serial ATA hard disk (SATA On-the-Go)
      • Support RAID 0, 1
  • BIOS:
    • 8 Mb Flash ROM
    • AMI BIOS
    • PnP
    • DMI2.0
    • WfM2.0
    • SM BIOS 2.3
    • Multi-language BIOS
    • ASUS EZ Flash
    • ASUS CrashFree BIOS2

  • Accessories:
    • SLI bridge connector
    • UltraDMA 133/100/66 cable
    • IDE cable
    • FDD cable
    • SATA cables
    • SATA power cables
    • USB2.0 / Game port module
    • COM port module
    • IEEE1394 port module
    • I/O Shield
    • InterVideo WinDVD Suite (OEM version)
    • User's manual
    • Optional Fan (for Water-Cooling or Passive-Cooling only)

  • SLI:
    • Support two identical SLI-ready graphics cards (both x16 mode)
    • ASUS EZ Plug
    • ASUS two-slot thermal design
    • ASUS Soft SLI Bridge
    • ASUS PEG Link for dual PCI Express graphics cards



ASUS A8N32-SLI Specifications

  • Model:
    • ASUS A8N32-SLI
  • Processor Support:
    • Socket 939 for AMD ® Athlon 64 FX / Athlon 64 X2 / Athlon 64 / Sempron processor
    • AMD Cool 'n' Quiet Technology

  • Chipset:
    • NVIDIA nForce4 SLI X16 (NVIDIA nForce SPP 100 / NVIDIA nForce4 SLI)

  • FSB:
    • 2000/1600 MT/s

  • Memory:
    • 4 x DIMM, max. 4GB, DDR 400/333/266, ECC and non-ECC, un-buffered memory
    • Dual Channel Memory Architecture

  • Expansion Slots:
    • 2 x PCI-E x16 with SLI support at full x16, x16 mode
    • 1 x PCI-E x4 (Support PCI-E x4 or PCI-E x1 card)
    • 3 x PCI 2.2

  • On-Board Audio:
    • Realtek ® ALC850
    • 8-channel CODEC
    • Universal Audio Jack
    • Audio Sensing and Enumeration Technology
    • Coaxial / Optical S/PDIF out ports on back I/O
  • On-Board LAN:
    • Dual Gigabit LAN
    • Marvell ® 88E8053 PCI-E Gigabit LAN controller
    • NVIDIA nForce4 SLI X16 Southbridge built-in Gigabit MAC with external Marvell 88E1111 PHY supports:
      • NV Firewall
      • NV RIS (Remote Installation Service)
      • NV ActiveArmor
      • AI NET


  • Rear Panel I/O Ports:
    • 1 x PS/2 Keyboard
    • 1 x PS/2 Mouse
    • 1 x Parallel
    • 1 x S/PDIF Out (Coaxial + Optical)
    • 1 x External SATA
    • 2 x RJ45
    • 4 x USB 2.0/1.1
    • 1 x Wireless LAN antenna jack
    • 1 x Wireless LAN activity LED
    • 8-Channel Audio I/O
  • Form Factor:
    •  ATX Form Factor
    •  12"x 9.6"(30.5cm x 24.5cm)

  • Manageability:
    • WfM 2.0
    • DMI 2.0
    • WOL by PME
    • WOR by PME
    • Chassis Intrusion
    • PXE
    • RPL

  • Support CD:
    • Drivers
    • ASUS PC Probe II
    • ASUS Update
    • ASUS AI Booster
    • NV RIS (Remote Installation Service) application
    • NV Firewall
    • NV RAID
    • Anti-virus software (OEM version)
