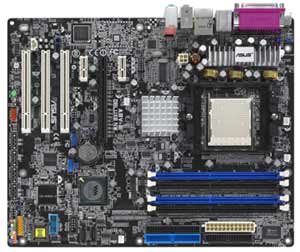

Asus A8V-E Deluxe

108412 - Socket 939 Motherboard AMD 64 Architecture with integrated Audio, LAN, WiFi-g, USB, 1 PCI Express x16, 3 PCI, 2 PCI Express x1, VIA K8T890, 4 DDR400/333/266 Un-Buffered ECC, SATA/RAID Support
Condition: New- Retail Box, Warranty: 1 year
by Asus
1 review | Add Your Review

$0.00

108412 - A8V-E Deluxe
Socket 939 Motherboard AMD 64 Architecture with integrated Audio, LAN, WiFi-g, USB, 1 PCI Express x16, 3 PCI, 2 PCI Express x1, VIA K8T890, 4 DDR400/333/266 Un-Buffered ECC, SATA/RAID Support

A8V-E Deluxe Socket 939 Motherboard

A8V-E Deluxe Motherboard

Socket 939 Motherboard AMD 64 Architecture with integrated Audio, LAN, WiFi-g, USB, 1 PCI Express x16, 3 PCI, 2 PCI Express x1, VIA K8T890, 4 DDR400/333/266 Un-Buffered ECC, SATA/RAID Support.



A8V-E Deluxe Socket 939 Motherboard AMD 64 Architecture with integrated Audio, LAN, WiFi-g, USB, 1 PCI Express x16, 3 PCI, 2 PCI Express x1, VIA K8T890, 4 DDR400/333/266 Un-Buffered ECC, SATA/RAID Support.

  • Internal I/O Interface:
    • 2 x USB 2.0 connector supports additional 4 USB 2.0 ports
    • CPU / Chassis / Power FAN connectors
    • 24-pin ATX Power connector
    • 4-pin ATX 12V Power connector
    • Chassis Intrusion
    • CD / AUX audio in
    • IEEE1394 port
    • GAME/MIDI connector
    • COM connector
    • Front panel audio connector

  • Storage/RAID:
    •  South Bridge:
      • 2 x UltraDMA 133/100/66/33
      • 2 x Serial ATA, support RAID 0, RAID 1, and JBOD
  • BIOS:
    • 4 Mb Flash ROM
    • Award BIOS
    • PnP
    • DMI2.0
    • WfM2.0
    • SM BIOS 2.3

  • Accessories:
    • Drivers
    • ASUS PC Probe
    • Anti-virus software (OEM version)
    • ASUS LiveUpdate Utility
    • InterVideo ® WinDVD Suite (OEM version)
    • 1 x Wireless LAN antenna
    • User's manual
    • 2 x UltraDMA cables
    • IDE cable
    • FDD cable
    • 2 x Serial ATA cables
    • 1 x 2-port SATA power cables
    • 2-port USB2.0 / Game module
    • I/O shield
    • IEEE1394 cable

  • ASUS AI Proactive Features:
    • Precision Tweaker
    • PEG (PCI Express Graphics) Link Mode
    • AI NOS (Non-delay Overclocking System)
    • WiFi-g powered by WiFi@HOME technology
    • AI NET2 network diagnosis before entering OS



A8V-E Deluxe Specifications

  • Model:
    • Asus A8V-E SE
  • Processor Support:
    • Socket 939 for AMD Athlon 64FX / Athlon 64 X2 / Athlon 64
    • AMD64 architecture enables simultaneous 32- and 64-bit computing
    • Supports AMD Cool 'n' Quiet Technology
  • Chipset:
    • VIA K8T890
    • VIA VT8237R

  • FSB:
    • 2000 MT/s

  • Memory:
    • 4 x 184-pin DIMM Sockets support max. 4GB DDR400/DDR333/DDR266 ECC/un-ECC un-buffered DDR SDRAM memory
    • Dual Channel Memory Architecture

  • Expansion Slots:
    • 1 x PCI-E X16
    • 2 x PCI-E X 1
    • 3 x PCI

  • On-Board Audio:
    • Realtek ALC850
    • 8-channel CODEC
    • Audio Sensing and Enumeration Technology
    • Three Universal Audio Jack (UAJ ®)
    • Coaxial S/PDIF out ports on back I/O
  • On-Board LAN:
    • Marvell 88E8053 GbE Gigabit Lan PCI Controller supporting 10/100/1000 BASE-T Ethernet
    • AI NET2
    • Virtual Cable Tester(VCT) Net-Diagnosing Utility


  • Rear Panel I/O Ports:
    • 1 x Parallel
    • 1 x Serial
    • 1 x PS/2 Keyboard
    • 1 x PS/2 Mouse
    • 1 x 8-channel Audio I/O
    • 1 x RJ45
    • 1 x Optical S/PDIF Output
    • 1 x Coaxial S/PDIF Output
    • 4 x USB 2.0/1.1
    • 1 x IEEE1394
  • Form Factor:
    • ATX Form Factor
    • 12" x 9.6"(30.5cm x 24.5cm)

  • Manageability:
    • WfM 2.0
    • DMI 2.0
    • WOL by PME
    • WOR by PME
    • Chassis Intrusion
