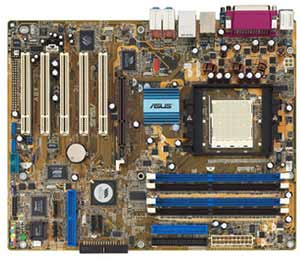

Asus A8V Deluxe

108417 - Socket 939 Motherboard AMD 64 Architecture with integrated Audio, LAN, WiFi-g, USB, 5 PCI, 1 AGP8X, VIA K8T800Pro, 4 DDR400/333/266 Un-Buffered ECC, SATA/RAID Support
Condition: New- Retail Box, Warranty: 1 year
by Asus
1 review | Add Your Review

$0.00

108417 - A8V Deluxe
Socket 939 Motherboard AMD 64 Architecture with integrated Audio, LAN, WiFi-g, USB, 5 PCI, 1 AGP8X, VIA K8T800Pro, 4 DDR400/333/266 Un-Buffered ECC, SATA/RAID Support

A8V Deluxe Socket 939 Motherboard

A8V Deluxe Motherboard

Socket 939 Motherboard AMD 64 Architecture with integrated Audio, LAN, WiFi-g, USB, 5 PCI, 1 AGP8X, VIA K8T800Pro, 4 DDR400/333/266 Un-Buffered ECC, SATA/RAID Support.



A8V-E Deluxe Socket 939 Motherboard AMD 64 Architecture with integrated Audio, LAN, WiFi-g, USB, 5 PCI, 1 AGP8X, VIA K8T800Pro, 4 DDR400/333/266 Un-Buffered ECC, SATA/RAID Support.

  • Internal I/O Interface:
    • 2 x USB 2.0 connector supports additional 4 USB 2.0 ports
    • CPU / Chassis / Power FAN connectors
    • 20-pin ATX Power connector
    • 4-pin ATX 12V Power connector
    • Chassis Intrusion
    • CD / AUX audio in
    • IEEE1394 port
    • GAME/MIDI connector
    • COM connector
    • Front panel audio connector

  • Storage/RAID:
    • South Bridge
      • 2 x UltraDMA 133/100/66/33
      • 2 x Serial ATA, support RAID 0, RAID 1, and JBOD
    • Promise 20378 RAID controller
      • 1 x UltraDMA 133/100/66/33
      • 2 x Serial ATA
      • Support RAID 0, RAID 1, RAID 0+1, and Multiple RAID
  • BIOS:
    • 4 Mb Flash ROM
    • AMI BIOS
    • PnP
    • DMI2.0
    • WfM2.0
    • SM BIOS 2.3

  • Accessories:
    • ASUS WiFi-g card (on Wireless edition only)
    • InterVideo WinDVD Suite Platinum
    • User's manual
    • 2 x UltraDMA cables
    • IDE cable
    • FDD cable
    • 4 x Serial ATA cables
    • 2 x 2-port SATA power cables
    • 2-port USB2.0 / Game module
    • I/O shield
    • IEEE1394 cable
    • Drivers
    • ASUS PC Probe
    • Trend Micro PC-cillin 2002 anti-virus software (OEM version)
    • ASUS LiveUpdate Utility

  • Special Features:
    • ASUS Wi-Fi@Home
    • ASUS MyLogo2
    • ASUS Multi-language BIOS
    • ASUS Instant Music
    • ASUS EZ Flash



A8V Deluxe Specifications

  • Model:
    • Asus A8V Deluxe
  • Processor Support:
    • Socket 939 for AMD Athlon 64FX / Athlon 64 X2 / Athlon 64
    • AMD64 architecture enables simultaneous 32- and 64-bit computing
    • Supports AMD Cool 'n' Quiet Technology
  • Chipset:
    • VIA K8T800Pro
    • VIA VT8237

  • FSB:
    • 2000 MT/s

  • Memory:
    • 4 x 184-pin DIMM Sockets support max. 4GB DDR400/DDR333/DDR266 ECC/un-ECC un-buffered DDR SDRAM memory
    • Dual Channel Memory Architecture

  • Expansion Slots:
    • 1 AGP8X(1.5V only)
    • 5 x PCI

  • On-Board Audio:
    • Realtek ALC850
    • 8-channel CODEC
    • Audio Sensing and Enumeration Technology
    • Three Universal Audio Jack (UAJ ®)
    • Coaxial/Optical S/PDIF out ports on back I/O
  • On-Board LAN:
    • Marvell 88E8053 GbE Gigabit Lan PCI Controller supporting 10/100/1000 BASE-T Ethernet
    • AI NET2
    • Virtual Cable Tester(VCT) Net-Diagnosing Utility


  • Rear Panel I/O Ports:
    • 1 x Parallel
    • 1 x Serial
    • 1 x PS/2 Keyboard
    • 1 x PS/2 Mouse
    • 1 x 8-channel Audio I/O
    • 1 x RJ45
    • 1 x Optical S/PDIF Output
    • 1 x Coaxial S/PDIF Output
    • 4 x USB 2.0/1.1
    • 1 x IEEE1394
  • Form Factor:
    • ATX Form Factor
    • 12" x 9.6"(30.5cm x 24.5cm)

  • Manageability:
    • WfM 2.0
    • DMI 2.0
    • WOL by PME
    • WOR by PME
    • Chassis Intrusion
