108607 - Intel D955XCS
Condition: New . Warranty:90 days .

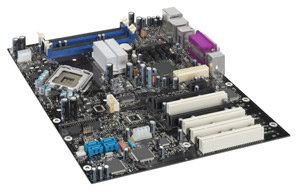

Intel D955XCS Motherboard

Intel   D955XCS Motherboard

Socket  775,Pentium, 955x chipset, 4 PCI, 3 PCI Express, DDR2, Onboard Audio, Lan, IDE, SATA, RAID, BTX Form factor.


  • Storage:
    • IDE
    • SATA
    • RAID
  • Form Factor:
    • BTX (12.80 inches by 10.50 inches)

Intel   D955XCSSpecifications

  • Model:
    • Intel D955XCS
  • Processor Support:
    • Support for Intel ® Pentium ® Processor Extreme Edition (in an LGA775 socket with an 800 MHz system bus)
    • Support for an Intel ® Pentium ® D Processor in an LGA775 socket with an 800 MHz system bus
    • Support for Intel ® Pentium ® 4 Processor Extreme Edition supporting Hyper-Threading Technology  (in an LGA775 socket with a 1066 MHz system bus)
    • Support for Intel ® Pentium ® 4 Processor supporting Hyper-Threading  in an LGA775 socket with an 800 MHz system bus
  • Chipset:
    • Intel ® 955X Chipset
  • Memory:
    • Four 240-pin DDR2 SDRAM DIMM sockets
    • Support for 667 and 533 MHz DDR2 DIMMs
    • Support for up to 8 GB of system memory
    • Support ECC and non-ECC memory
  • Expansion Slots:
    • Four PCI Conventional* bus add-in card connectors (SMBus routed to PCI Conventional bus connector 2)
    • One PCI Express* x16 bus add-in card connector
    • One Secondary PCI Express* x16/x4 bus add-in card connector
    • One PCI Express* x1 bus add-in card connector
  • On-Board Audio:
    • Intel ® High Definition Audio subsystem

  • On-Board LAN:
    • Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel ® 82573E/82573V Gigabit Ethernet Controller

  • Rear Panel I/O Ports:
    • Eight USB 2.0 ports One serial port One parallel port Four Serial ATA interfaces with RAID support One parallel ATA IDE interface with UDMA 33, ATA-66/100 support One diskette drive interface PS/2 keyboard and mouse ports
