Home > Motherboards and Multi-Media > Motherboards: For Intel CPUs > Socket 775/479/478/423 > Intel D945GNT

Click here to go back to search result

108635 - Intel D945GNT
Condition: New . Warranty:90 days . $99.99

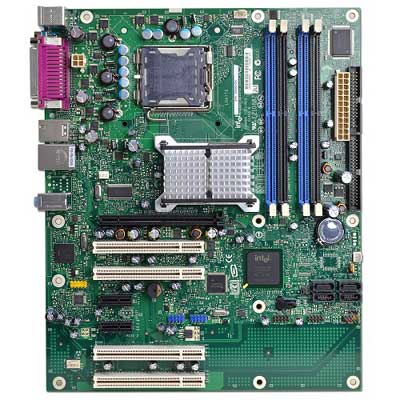

Intel D945GNT Motherboard

Intel D945GNT Motherboard

Socket 775, Pentium, 945G chipset, 4 PCI, 3 PCI Express, DDR2, Onboard Audio, Video, LAN, IDE, SATA, RAID,ATX form factor.

Intel D945GNT Motherboard,socket 775 motherboard,

Intel D945GNT Motherboard,

  • Storage:
    • IDE
    • SATA
    • RAID
  • Form Factor:
    • ATX
    • Dimensions: 11.6" W x 9.6" D

Intel Specifications

  • Model:
    • Intel D945GNT
  • Processor Support:
    • Support for an Intel Pentium D Processor in an LGA775 socket with an 800 MHz system bus
    • Support for an Intel Pentium 4 Processor in an LGA775 socket with an 800 MHz system bus
    • Support for an Intel Celeron D Processor in an LGA775 socket with a 533 MHz system bus
  • Chipset:
    • Intel 945G Express Chipset
  • Memory:
    • Four 240-pin DDR2 SDRAM DIMM sockets
    • Support for DDR2 667, DDR2 533, or DDR2 400 MHz DIMMs
    • Support for up to 4 GB of system memory
  • Expansion Slots:
    • Four PCI Conventional* bus connectors
    • Two PCI Express* x1 bus add-in card connectors
    • One PCI Express x16 bus add-in card connector
  • On-Board Audio:
    • Intel High Definition Audio subsystem in one of the following configurations:
    • 8-channel (7.1) audio subsystem with five analog audio outputs and one S/PDIF optical digital audio output using the Sigmatel 9223* audio codec
    • 6-channel (5.1) audio subsystem with three analog audio outputs using the Sigmatel 9220* audio codec
  • On-Board Video:
    • Intel GMA 950 onboard graphics subsystem

  • On-Board LAN:
    • Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel 82573E/82573V/82574V Gigabit Ethernet Controller One serial port
    • 10/100 Mbits/sec LAN subsystem using the Intel 82562GX/82562GZ PLC device

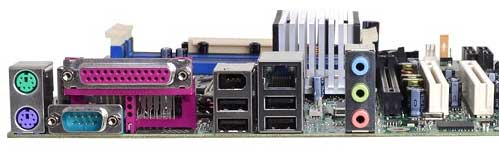

  • Rear Panel I/O Ports:
    • Four USB 2.0 ports + headers for 4 more
    • One serial port
    • One parallel port
    • Four Serial ATA interfaces
    • One parallel ATA IDE interface with UDMA 33, ATA-66/100 support
