Intel

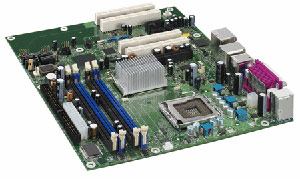

D945GNTLR Motherboard
Socket 775,Pentium,Celeron D,945G chipset,4 PCI,2 PCI Express,DDR2,Onboard Audio,Video,Lan,IDE,SATA,RAID,ATX
Form factor. |
|
|
Intel D945GNTLR
Specifications
- Processor Support:
- Support for an Intel ® Pentium ® D
Processor in an LGA775 socket with an 800 MHz system bus
- Support for an Intel ® Pentium ® 4
Processor in an LGA775 socket with an 800 MHz system bus
- Support for an Intel ® Celeron ® D
Processor in an LGA775 socket with a 533 MHz system bus
- Chipset:
- Intel ® 945G Express Chipset
- Memory:
- Four 240-pin DDR2 SDRAM DIMM
sockets
- Support for DDR2 667, DDR2 533, or
DDR2 400 MHz DIMMs
- Support for up to 4 GB of system
memory
- Expansion Slots:
- Four PCI Conventional* bus
connectors
- Two PCI Express* x1 bus add-in
card connectors
- One PCI Express x16 bus add-in
card connector
- On-Board Audio:
- Intel ® High Definition Audio subsystem in one of the following
configurations:
- 8-channel (7.1) audio subsystem with five analog audio outputs
and one S/PDIF optical digital audio output using the Sigmatel 9223*
audio codec
- 6-channel (5.1) audio subsystem with three analog audio outputs
using the Sigmatel 9220* audio codec
- On-Board Video:
-
Intel ® GMA 950 onboard graphics subsystem
- On-Board LAN:
- Gigabit (10/100/1000 Mbits/sec)
LAN subsystem using the Intel ® 82573E/82573V/82574V Gigabit Ethernet
Controller One serial port
- 10/100 Mbits/sec LAN subsystem
using the Intel ® 82562GX/82562GZ PLC device
- Rear Panel I/O Ports:
- Eight USB 2.0 ports
- One serial port
- One parallel port
- Four Serial ATA interfaces
- One parallel ATA IDE interface with UDMA 33, ATA-66/100 support
|
