Home > Specialty Services > Other Specialty Services > Intel D945PSN

Click here to go back to search result

108654 - Intel D945PSN
Condition: New- Retail Box . Warranty:1 year .

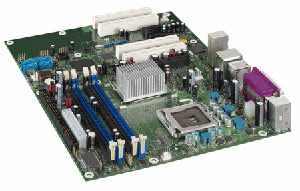

INTEL D945PSN Motherboard

INTEL D945PSN Motherboard

Socket 775,Pentium,Celeron D,945G Chipset,4 PCI,3 PCI Express,DDR2,Onboard Audio,Lan,IDE,SATA,ATX form factor.



INTEL D945PSN Motherboard Socket 775,Pentium,Celeron D,945G Chipset,4 PCI,3 PCI Express,DDR2,Onboard Audio,Lan,IDE,SATA,ATX form factor

  • Storage:
    • IDE
    • SATA
  • Form Factor:
    • ATX


Intel  D945PSN Specifications

  • Model:
    • INTEL  D945PSN
  • Processor Support:
    • Support for an Intel Pentium D Processor in an LGA775 socket with an 800 MHz system bus
    • Support for an Intel Pentium 4 Processor in an LGA775 socket with an 800 MHz system bus
    • Support for an Intel Celeron D Processor in an LGA775 socket with a 533 MHz system bus

  • Chipset:
    • Intel 945P Chipset
  • Memory:
    • Four 240-pin DDR2 SDRAM DIMM sockets
    • Support for DDR2 667, DDR2 533, or DDR2 400 MHz DIMMs
    • Support for up to 4 GB of system memory

  • Expansion Slots:
    • Four PCI Conventional* bus connectors
    • Two PCI Express* x1 bus add-in card connectors
    • One PCI Express x16 bus add-in card connector

  • On-Board Audio:
    • 6-channel (5.1) audio subsystem with three analog audio outputs using the Sigmatel 9220* audio codec

  • On-Board LAN:
    • Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel 82573V/82574V
    • Gigabit Ethernet Controller 10/100 Mbits/sec LAN subsystem using the Intel 82562GX Platform LAN Connect (PLC) device


  • Rear Panel I/O Ports:
    • Eight USB 2.0 ports
    • One serial port
    • One parallel port
    • Four Serial ATA interfaces
    • One parallel ATA IDE interface with UDMA 33, ATA-66/100 support
