Home > Motherboards and Multi-Media > Motherboards: For Intel CPUs > Socket 775/479/478/423 > Intel D945PVS

Click here to go back to search result

108656 - Intel D945PVS
Condition: New- Retail Box . Warranty:1 year . $204.92

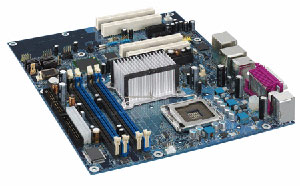

INTEL D945PVS Motherboard

INTEL D945PVS Motherboard

Socket 775,Pentium,Celeron D,945P chipset,4 PCI,3PCI Express,DDR2,Onboard Audio,Lan,IDE,SATA,RAID,ATX Form Factor.



INTEL D945PVS Motherboard Socket 775,Pentium,Celeron D,945P chipset,4 PCI,3PCI Express,DDR2,Onboard Audio,Lan,IDE,SATA,RAID,ATX Form Factor

  • Storage:
    • IDE
    • SATA
    • RAID
  • Form Factor:
    • ATX




Intel D945PVS Specifications

  • Model:
    • INTEL  D945PVS
  • Processor Support:
    • Support for an Intel Pentium D Processor in an LGA775 socket with an 800 MHz system bus
    • Support for an Intel Pentium 4 Processor in an LGA775 socket with an 800 MHz system bus
    • Support for an Intel Celeron D Processor in an LGA775 socket with a 533 MHz system bus

  • Chipset:
    • Intel 945P Chipset
  • Memory:
    • Four 240-pin DDR2 SDRAM DIMM sockets
    • Support for DDR2 667, DDR2 533, or DDR2 400 MHz DIMMs
    • Support for up to 4 GB of system memory

  • Expansion Slots:
    • Four PCI Conventional* bus connectors
    • Two PCI Express* x1 bus add-in card connectors
    • One PCI Express x16 bus add-in card connector

  • On-Board Audio:
    • 8-channel (7.1) audio subsystem with five analog audio outputs and one S/PDIF optical digital audio output using the Sigmatel 9223* audio codec
  • On-Board LAN:
    • Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel 82573E/82573V/82574V Gigabit Ethernet Controller


  • Rear Panel I/O Ports:
    • Eight USB 2.0 ports
    • One serial port
    • One parallel port
    • Four Serial ATA interfaces
    • One parallel ATA IDE interface with UDMA 33, ATA-66/100 support
