Intel  D915GEV

Intel D915GEV

108697 - Socket 775,Pentium,Celeron D,915G Chipset,4 PCI,3 PCI Express,DDR,Onboard Audio,Video, Lan,IDE,SATA,ATX Form FActor
Condition: New- Retail Box, Warranty: 1 year
by Intel
1 review | Add Your Review

$130.38

108697 - D915GEV
Socket 775,Pentium,Celeron D,915G Chipset,4 PCI,3 PCI Express,DDR,Onboard Audio,Video, Lan,IDE,SATA,ATX Form FActor

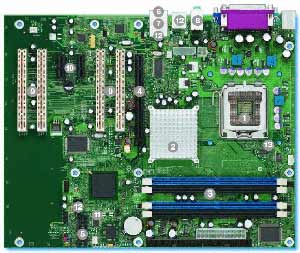

INTEL D915GEV Motherboard

INTEL D915GEV Motherboard

Socket 775,Pentium,Celeron D,915G Chipset,4 PCI,3 PCI Express,DDR,Onboard Audio,Video, Lan,IDE,SATA,ATX Form FActor.



INTEL D915GEV Motherboard Socket 775,Pentium,Celeron D,915G Chipset,4 PCI,3 PCI Express,DDR,Onboard Audio,Video, Lan,IDE,SATA,ATX Form FActor

  • Storage:
    • IDE
    • SATA
  • Form Factor:
    • ATX

INTEL D915GEV Specifications

  • Model:
    • INTEL D915GEV
  • Processor Support:
    • Supports Intel ® Pentium ® 4 Processor Extreme Edition (LGA775 socket with 800 MHz system bus)
    • Supports Intel ® Pentium ® 4 Processor supporting Hyper-Threading Technology  (LGA775 socket with 533/800 MHz system bus)
    • Supports Intel ® Celeron ® D Processor (LGA775 socket with 533 MHz system bus)

  • Chipset:
    • Intel ® 915G Chipset
  • Memory:
    • Four DDR2 SDRAM DIMM sockets
    • Support for DDR2 533 MHz or DDR2 400 MHz DIMMs
    • Support for up to 4 GB of system memory

  • Expansion Slots:
    • Four PCI Conventional* bus add-in card connectors (SMBus routed to PCI Conventional bus connector 2)
    • Two PCI Express* x1 bus add-in card connectors
    • One PCI Express* x16 bus add-in card connector

  • On-Board Audio:
    • Intel ® High Definition Audio subsystem using the Realtek ALC860 audio codec*
  • On-Board Video:
    • Intel ® GMA 900 onboard graphics subsystem

  • On-Board LAN:
    • Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Marvel Yukon* 88E8050 PCI Express* Gigabit Ethernet Controller
    • 10/100 Mbits/sec LAN subsystem using the Intel ® 82562EZ Platform LAN Connect (PLC) device


  • Rear Panel I/O Ports:
    • Eight USB 2.0 ports
    • One serial port
    • One parallel port
    • Four Serial ATA interfaces
    • One parallel ATA IDE interface with UDMA 33, ATA-66/100 support
