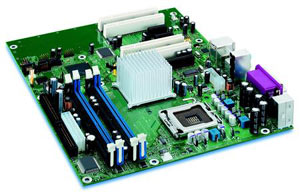

INTEL  D915GAV Motherboard

• Form Factor:
  • ATX

INTEL  D915GAV Specifications

• Model:
  • INTEL D915GAV

• Processor Support:
  • Supports Intel ® Pentium ® 4 Processor Extreme Edition (LGA775 socket with 800 MHz system bus)
  • Supports Intel ® Pentium ® 4 Processor supporting Hyper-Threading Technology  (LGA775 socket with 533/800 MHz system bus)
  • Supports Intel ® Celeron ® D Processor (LGA775 socket with 533 MHz system bus)

• Chipset:
  • Intel ® 915G Chipset

• Memory:
  • Four DDR SDRAM DIMM sockets
  • Support for DDR 400 MHz and DDR 333 MHz DIMMs
  • Support for up to 4 GB of system memory

• Expansion Slots:
  • Four PCI Conventional* bus add-in card connectors (SMBus routed to PCI Conventional bus connector 2)
  • Two PCI Express* x1 bus add-in card connectors
  • One PCI Express* x16 bus add-in card connector

• On-Board Audio:
  • Intel ® High Definition Audio subsystem using the Realtek* ALC860 audio codec

• On-Board Video:
  • Intel ® GMA 900 onboard graphics subsystem

• On-Board LAN:
  • 10/100 Mbits/sec LAN subsystem using the Intel ® 82562EZ Platform LAN Connect (PLC) device


• Rear Panel I/O Ports:
  • Eight USB 2.0 ports
  • One serial port
  • One parallel port
  • Four Serial ATA interfaces
  • One parallel ATA IDE interface with UDMA 33, ATA-66/100 support
