Abit AT8

108733 - AT8,Socket�939,AMD Athlon 64X2,Athlon 64FX,Athlon 64,ATI RD480 Radeon Xpress 200 chip,2PCI,2PCI Express,DDR,Onboard Audio,Lan,IDE,SATA,RAID,ATX Form Factor
Condition: New- Retail Box, Warranty: 1 year
by Abit
1 review | Add Your Review

$0.00

108733 - AT8
AT8,Socket�939,AMD Athlon 64X2,Athlon 64FX,Athlon 64,ATI RD480 Radeon Xpress 200 chip,2PCI,2PCI Express,DDR,Onboard Audio,Lan,IDE,SATA,RAID,ATX Form Factor

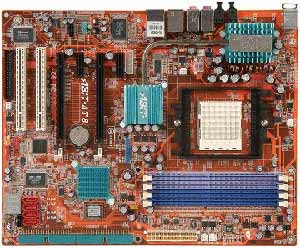

ABIT AT8 Motherboard

ABIT AT8 Motherboard

Socket 939,AMD Athlon 64X2,Athlon 64FX,Athlon 64,ATI RD480 Radeon Xpress 200 chip,2PCI,2PCI Express,DDR,Onboard Audio,Lan,IDE,SATA,RAID,ATX Form Factor.



ABIT AT8 Motherboard Socket 939,AMD Athlon 64X2,Athlon 64FX,Athlon 64,ATI RD480 Radeon Xpress 200 chip,2PCI,2PCI Express,DDR,Onboard Audio,Lan,IDE,SATA,RAID,ATX Form Factor

  • Storage:
    • IDE
    • SATA
    • RAID
  • Form Factor:
    • ATX form factor

ABIT AT8 Specifications

  • Model:
    • ABIT AT8

    Processor Support:

    •  Socket 939 for AMD Athlon 64X2/ 64FX/ 64 Processors
    • 2000MT/s System Bus using Hyper Transport Technology
    • AMD CPU Cool 'n' Quiet Technology

  • Chipset:
    • ATI RD480 Radeon Xpress 200 chip
    • ULI 1575 SB chip
    • 4 Lanes PCI Express interface between NB and SB
  • Memory:
    • Four 184-pin DIMM sockets
    • Supports dual channel DDR400 ECC/non-ECC un-buffered memory
    • Supports maximum memory capacity up to 8GB

  • Expansion Slots:
    • 2 x PCI Express X16
    • 2 x PCI Express X1
    • 2 x PCI slots

  • On-Board Audio:
    • 7.1 CH ALC882D (Dolby Digital Live) HD Audio CODEC
    • Dolby Digital Live, a real-time encoding technology, Dolby Digital Live converts any audio signals into a Dolby Digital bitstream for transport and playback through a home theater system
    • Auto Jack Sensing and optical S/P DIF In/Out

  • On-Board LAN:
    • 10/100/1000M PCI controller


  • Rear Panel I/O Ports:
    • 1 x S/P DIF In
    • 1 x S/P DIF Out
    • 7.1 CH Audio connector (Front, Line-in, MIC-in, Center/Subwoofer, Surround, Rear Surround)
    • 4 x USB
    • 1 x RJ-45 LAN Connector
    • 1 x IEEE 1394
