Abit LG-81

108794 - LG-81,Socket�775,Pentium 4,Pentium 4 EE,Pentium D,Pentium XE,Celeron D,945G Chipset,1 PCI,DDR2,Onboard Audio,Lan,IDE,SATA,Micro ATX Form FActor
Condition: New- Retail Box, Warranty: 1 year
by Abit
1 review | Add Your Review

$0.00

108794 - LG-81
LG-81,Socket�775,Pentium 4,Pentium 4 EE,Pentium D,Pentium XE,Celeron D,945G Chipset,1 PCI,DDR2,Onboard Audio,Lan,IDE,SATA,Micro ATX Form FActor

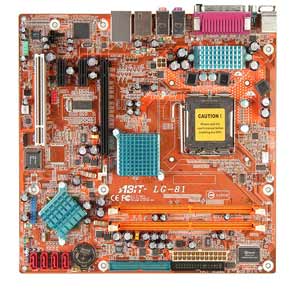

ABIT LG-81 Motherboard

ABIT LG-81 Motherboard

Socket 775,Pentium 4,Pentium 4 EE,Pentium D,Pentium XE,Celeron D,945G Chipset,1 PCI,DDR2,Onboard Audio,Lan,IDE,SATA,Micro ATX Form FActor.



ABIT LG-81 Motherboard Socket 775,Pentium 4,Pentium 4 EE,Pentium D,Pentium XE,Celeron D,945G Chipset,1 PCI,DDR2,Onboard Audio,Lan,IDE,SATA,Micro ATX Form FActor

  • Storage:
    • IDE
    • SATA
  • Form Factor:
    • Micro ATX form factor

ABIT LG-81 Specifications

  • Model:
    • ABIT LG-81
  • Processor Support:
    • Supports Socket 775 for Intel Pentium 4 / Pentium 4 EE / Pentium D / Pentium XE / Celeron D processors
    • Supports 1066/800MHz FSB
    • Supports Intel Hyper-Threading / XD-bit / EM64T Technology
    • Enhanced Intel SpeedStep Technology

  • Chipset:
    • Intel 945G / Intel ICH7 Express Chipset
  • Memory:
    • Two 240-pin DIMM sockets
    • Supports Dual channel DDR2 667/533 Un-buffered Non-ECC memory
    • Supports maximum memory capacity up to 2GB

  • Expansion Slots:
    • 1 x PCI slot

  • On-Board Audio:
    • Intel  High Definition (HD) 7.1-Channel Audio

  • On-Board LAN:
    • 10/100/1000M PCI-E controller


  • Rear Panel I/O Ports:
    • 1 x Serial Port connector
    • 1 x Parallel Port connector
    • 1 x VGA connector
    • 1 x Audio connector (Line Out, Line-in, MIC-in)
    • 1 x Audio connector (Center/Subwoofer, Center Surround, Rear Surround)
    • 4 x USB Connectors
    • 1 x RJ-45 LAN Connector
