108889 - Abit AS8
Condition: New- Retail Box . Warranty:1 year .

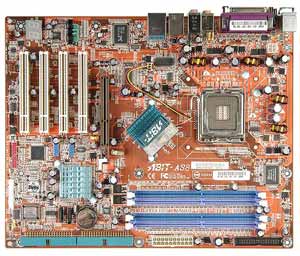

ABIT AS8 Motherboard

ABIT AS8 Motherboard

Socket 775,Pentium 4,Pentium 4 EE,Pentium XE,Celeron D,865PE chipset,4 PCI,DDR,Onboard Audio,Lan,IDE,SATA,RAID,ATX Form Factor.



ABIT AS8 Motherboard Socket 775,Pentium 4,Pentium 4 EE,Pentium XE,Celeron D,865PE chipset,4 PCI,DDR,Onboard Audio,Lan,IDE,SATA,RAID,ATX Form Factor

  • Storage:
    • IDE
    • SATA
    • RAID
  • Form Factor:
    • ATX form factor

ABIT AS8 Specifications

  • Model:
    • ABIT AS8
  • Processor Support:
    • Socket 775 for Intel Pentium 4 / Pentium 4 EE / Pentium XE / Celeron D processors

  • Chipset:
    • Intel 865PE/ICH5-R
  • Memory:
    • Four 184-pin DIMM sockets
    • Supports 4 DIMM Dual Channel DDR 400 memory (Max. 4GB)

  • Expansion Slots:
    • 1 x AGP
    • 4 x PCI slots

  • On-Board Audio:
    • On board 6-Channel AC 97 CODEC
    • Professional digital audio interface supports optical S/PDIF Input/Output

  • On-Board LAN:
    • 10/100M LAN


  • Rear Panel I/O Ports:
    • 1 x S/PDIF In connector
    • 1 x S/PDIF Out connector
    • 1 x Audio connector (Front Speaker, Line-in, Mic-in)
    • 1 x Audio connector (Center/Sub, Surround Speaker)
    • 2 x USB 2.0, 1X IEEE 1394 Connector
    • 2 x USB 2.0, 1 x RJ-45 LAN Connector
