Abit UL8

108906 - UL8,Socket 939,Athlon64/ Athlon64 FX,ULi M1689 single chip,5 PCI,DDR,Onboard AQudio,Lan,IDE,SATA,RAID,ATX Form Factor
Condition: New- Retail Box, Warranty: 1 year
by Abit
1 review | Add Your Review

$0.00

108906 - UL8
UL8,Socket 939,Athlon64/ Athlon64 FX,ULi M1689 single chip,5 PCI,DDR,Onboard AQudio,Lan,IDE,SATA,RAID,ATX Form Factor

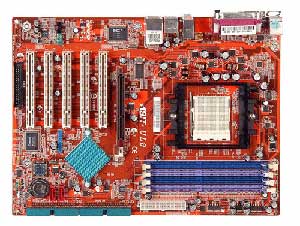

ABIT UL8 Motherboard

ABIT UL8 Motherboard

Socket 939,Athlon64/ Athlon64 FX,ULi M1689 single chip,5 PCI,DDR,Onboard AQudio,Lan,IDE,SATA,RAID,ATX Form Factor.



ABIT UL8 Motherboard Socket 939,Athlon64/ Athlon64 FX,ULi M1689 single chip,5 PCI,DDR,Onboard AQudio,Lan,IDE,SATA,RAID,ATX Form Factor

  • Storage:
    • IDE
    • SATA
    • RAID
  • Form Factor:
    • ATX form factor



ABIT UL8 Specifications

  • Model:
    • ABIT UL8

    Processor Support:

    •  Designed for AMD Socket 939 Athlon64/ Athlon64 FX processors
    • 2000MT/s system bus using Hyper Transport Technology
    • Support AMD next generation Dual Core CPU
    • Support AMD CPU Cool 'n' Quiet Technology

  • Chipset:
    • ULi M1689 single chip
  • Memory:
    • Four 184 -pin DIMM sockets
    • Supports Dual DDR400 Un-buffered ECC/Non-ECC memory
    • Supports maximum memory capacity up to 8GB

  • Expansion Slots:
    • 1 x AGP 8X
    • 5 x PCI slot
    • 2 x Ultra DMA 133/100/66/33 IDE Connectors
    • 2 x SATA Connectors
    • 2 x USB 2.0 headers
    • 1 x CD-IN header

  • On-Board Audio:
    • 5.1 channels Audio CODEC
    • Supports auto jack sensing and optical S/PDIF Out

  • On-Board LAN:
    • 10/100MB LAN


  • Rear Panel I/O Ports:
    • 1 x S/PDIF Out Connector
    • 1 x Audio connector (Line Out, Line-in, MIC-in)
    • 4 x USB Connectors
    • 1 x RJ-45 LAN Connector
