Abit KN8 Ultra

108916 - KN8 Ultra,Socket 939,Athlon 64/64FX,Athlon 64 X2,NVIDIA NF4 Ultra single chip,3 PCI,4 PCI Express,DDR,Onboard Audio,Lan,IDE,SATA,RAID,ATX Form Factor
Condition: New- Retail Box, Warranty: 1 year
by Abit
1 review | Add Your Review

$0.00

108916 - KN8 Ultra
KN8 Ultra,Socket 939,Athlon 64/64FX,Athlon 64 X2,NVIDIA NF4 Ultra single chip,3 PCI,4 PCI Express,DDR,Onboard Audio,Lan,IDE,SATA,RAID,ATX Form Factor

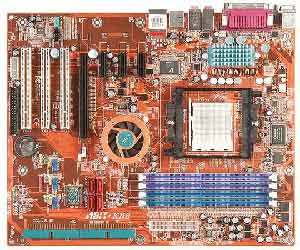

ABIT KN8 Ultra Motherboard

ABIT KN8 Ultra Motherboard

Socket 939,Athlon 64/64FX,Athlon 64 X2,NVIDIA NF4 Ultra single chip,3 PCI,4 PCI Express,DDR,Onboard Audio,Lan,IDE,SATA,RAID,ATX Form Factor.



ABIT KN8 Ultra Motherboard Socket 939,Athlon 64/64FX,Athlon 64 X2,NVIDIA NF4 Ultra single chip,3 PCI,4 PCI Express,DDR,Onboard Audio,Lan,IDE,SATA,RAID,ATX Form Factor

  • Storage:
    • IDE
    • SATA
    • RAID
  • Form Factor:
    • ATX Form Factor



ABIT KN8 Ultra Specifications

  • Model:
    • ABIT KN8 Ultra

    Processor Support:

    •  Supports AMD Socket 939 Athlon 64/64FX & Athlon 64 X2 dual-core Processors
    • With 2GHz system bus using Hyper Transport Technology
    • Supports AMD CPU Cool 'n' Quiet Technology

  • Chipset:
    • NVIDIA NF4 Ultra single chip
  • Memory:
    • Four 184-pin DIMM sockets
    • Supports dual channel DDR400 non-ECC un-buffered memory
    • Supports maximum memory capacity up to 8GB

  • Expansion Slots:
    • 1 x PCI Express X16
    • 3 x PCI Express X1
    • 3 x PCI slots
    • 2 x Ultra DMA 133/100/66/33 IDE Connectors
    • 4 x SATA 3G Connectors
    • 3 x USB headers

  • On-Board Audio:
    • 7.1-channel Audio on Board
    • Optical S/P DIF Out Only
    • Supports auto jack sensing

  • On-Board LAN:
    • NVIDIA Gigabit Ethernet


  • Rear Panel I/O Ports:
    • S/P DIF Out
    • Audio Jack (Line-in, Line-out, Mic-in)
    • Audio Jack (Front, Rear, Cen/Sub)
    • 4 x USB
    • 1 x RJ-45 LAN Connector
