Abit AV8-3rd Eye

109092 - AV8-3rd Eye,Socket 939,AMD Athlon64 / Athlon64 FX & Athlon 64 X2,VIA K8T800 Pro/ VT8237 chipset,5 PCI,DDR,Onboard Audio,Lan,IDE,SATA,RAID,ATX form factor
Condition: New- Retail Box, Warranty: 1 year
by Abit
1 review | Add Your Review

$0.00

109092 - AV8-3rd Eye
AV8-3rd Eye,Socket 939,AMD Athlon64 / Athlon64 FX & Athlon 64 X2,VIA K8T800 Pro/ VT8237 chipset,5 PCI,DDR,Onboard Audio,Lan,IDE,SATA,RAID,ATX form factor

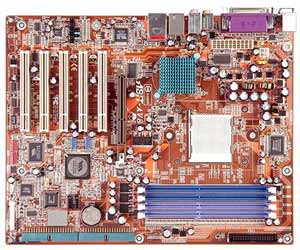

Abit AV8-3rd Eye Motherboard

Abit AV8-3rd Eye Motherboard

Socket 939,AMD Athlon64 / Athlon64 FX & Athlon 64 X2,VIA K8T800 Pro/ VT8237 chipset,5 PCI,DDR,Onboard Audio,Lan,IDE,SATA,RAID,ATX form factor.



Abit AV8-3rd Eye Motherboard Socket 939,AMD Athlon64 / Athlon64 FX & Athlon 64 X2,VIA K8T800 Pro/ VT8237 chipset,5 PCI,DDR,Onboard Audio,Lan,IDE,SATA,RAID,ATX form factor

  • Storage:
    • IDE
    • SATA
    • RAID
  • Form Factor:
    • ATX form factor



Abit AV8-3rd Eye  Specifications

  • Model:
    • Abit AV8-3rd Eye
  • Processor Support:
    • Supports AMD Athlon64 / Athlon64 FX & Athlon 64 X2 dual-core 939-pin processor
    • 2000MHz system bus using Hyper Transport technology

  • Chipset:
    • VIA K8T800 Pro/ VT8237 chipset
    • Supports Advanced Configuration and Power Management Interface (ACPI)
    • Accelerated Graphics Port connector supports AGP 8X/4X
  • Memory:
    • Four 184-pin DIMM sockets (Un-buffered Non-ECC DIMM)
    • Supports 2 DIMM Single Channel DDR 400/333/266 (Max. 2GB)
    • Supports 4 DIMM Dual Channel DDR 400/333/266 (Max. 8GB)

  • Expansion Slots:
    • 1 x AGP 8X/4X slot
    • 5 x PCI slots
    • 2 x Ultra DMA 133/100/66/33 Connectors
    • 2 x SATA 150 Connectors
    • 2 x USB headers
    • 2 x IEEE1394 headers
    • 1 x FP-Audio header
    • 1 x CD-IN
    • 1 x AUX IN

  • On-Board Audio:
    • 6-Channel AC'97 CODEC on board
    • Professional digital audio interface supports optical S/P DIF In/Out

  • On-Board LAN:
    • On board Gigabit PCI Ethernet Controller
    • Operation support ACPI & Wake on LAN


  • Rear Panel I/O Ports:
    • 1 x S/P DIF Output
    • 1 x S/P DIF Input
    • 1 x Audio connector (Center/Subwoofer, Surround Speaker)
    • 1 x Audio connector (Line Out, Line-in, MIC-in)
    • 4 x USB
    • 1 x IEEE1394 Connector
    • 1 x RJ-45 LAN Connector
