Abit KU8

109120 - KU8,Socket 754,Athlon 64,Sempron,.ULI M1689,5 PCI,DDR,Onboard Audio,Lan,IDE,SATA,ATX form factor
Condition: New- Retail Box, Warranty: 1 year
by Abit
1 review | Add Your Review

$0.00

109120 - KU8
KU8,Socket 754,Athlon 64,Sempron,.ULI M1689,5 PCI,DDR,Onboard Audio,Lan,IDE,SATA,ATX form factor

Abit Motherboard

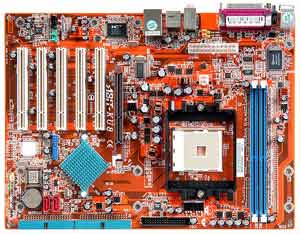

Abit  KU8 Motherboard

Socket  754,Athlon 64,Sempron,.ULI M1689,5 PCI,DDR,Onboard Audio,Lan,IDE,SATA,ATX form factor.



Abit  KU8 Motherboard Socket  754,Athlon 64,Sempron,.ULI M1689,5 PCI,DDR,Onboard Audio,Lan,IDE,SATA,ATX form factor


  • Storage:
    • IDE
    • SATA
  • Form Factor:
    • ATX form factor

Abit  KU8 Specifications

  • Model:
    • Abit KU8
  • Processor Support:
    • Supports AMD Socket 754 Athlon 64/Sempron Processors
    • With 1.6GHz system bus using Hyper Transport technology
    • Supports AMD CPU Cool ˜n™ Quiet Technology

  • Chipset:
    • ULI M1689 single chip supports 2GHz Hyper Transport
  • Memory:
    • Two 184-pin DIMM sockets
    • Supports DDR400 non-ECC un-buffered memory
    • Supports maximum memory capacity up to 2GB

  • Expansion Slots:
    • 1 AGP 8X/4X slot
    • 5 PCI slots
    • 2 x Ultra DMA 33/66/100/133 Connectors
    • 2 x Serial ATA 150 Connectors
    • 2 x USB headers
    • 1 x CD-IN

  • On-Board Audio:
    • 6-Channel AC 97 CODEC on board

  • On-Board LAN:
    • On board 10/100MB LAN


  • Rear Panel I/O Ports:
    • 3 holes Audio connector (Mic-In, Line-In, Line-Out)
    •  4 x USB
    • 1 x RJ-45 LAN Connector
