Abit NV8

109129 - NV8,Socket 754,Athlon 64/Sempron,NVIDIA NF4-4X,3 PCI,4 PCI Express,DDR,Onboard Audio,Lan,IDE,SATA,RAID,ATX form factor.
Condition: New- Retail Box, Warranty: 1 year
by Abit
1 review | Add Your Review

$0.00

109129 - NV8
NV8,Socket 754,Athlon 64/Sempron,NVIDIA NF4-4X,3 PCI,4 PCI Express,DDR,Onboard Audio,Lan,IDE,SATA,RAID,ATX form factor.

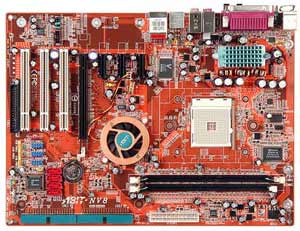

Abit  NV8 Motherboard

Abit NV8 Motherboard

Socket 754,Athlon 64/Sempron,NVIDIA NF4-4X,3 PCI,4 PCI Express,DDR,Onboard Audio,Lan,IDE,SATA,RAID,ATX form factor.



Abit NV8 Motherboard Socket 754,Athlon 64/Sempron,NVIDIA NF4-4X,3 PCI,1 PCI Express,DDR,Onboard Audio,Lan,IDE,SATA,RAID,ATX form factor

  • Storage:
    • IDE
    • SATA
    • RAID
  • Form Factor:
    • ATX form factor

Abit NV8 Specifications

  • Model:
    • Abit NV8
  • Processor Support:
    • Supports AMD Socket 754 Athlon 64/Sempron Processors
    • With 1.6GHz system bus using Hyper TransportTM technology
    • Supports AMD CPU Cool 'n' Quiet Technology

  • Chipset:
    • NVIDIA NF4-4X single chip
    • Integrated NVIDIA Gigabit Ethernet and NVIDIA Firewall
    • Supports NV RAID
  • Memory:
    • Two 184-pin DIMM sockets
    • Supports DDR400/333 non-ECC un-buffered memory
    • Supports maximum memory capacity up to 2GB

  • Expansion Slots:
    • 1 PCI Express X16 slot
    • 3 PCI Express X1
    • 3 PCI slots
    • 2 x Ultra DMA 133/100/66/33 IDE Connectors
    • 4 x SATA 150 Connectors
    • 3 x USB headers
    • 1 x CD-IN

  • On-Board Audio:
    • On board 7.1-channel Audio CODEC
    • Optical S/P DIF Out Only
    • Supports auto jack sensing

  • On-Board LAN:
    • NVIDIA Gigabit Ethernet


  • Rear Panel I/O Ports:
    • Audio connector (Rear, Surround, Center/Sub)
    • Audio connector (Front, Line-in, MIC-in)
    • 4 x USB
    • 1 x RJ-45 LAN connector
