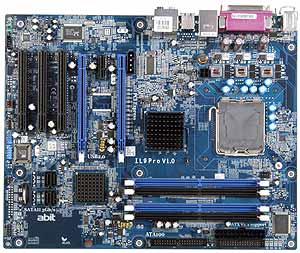

Abit IL9 PRO

109498 - Abit IL9 Pro Socket LGA775 Motherboard, Intel 945P Chipset, 1066 mHz FSB, DDR2 Dual-Channel DIMMs, 3 x PCI-E, 3 x PCI, On-board Audio and LAN. ATX Form Factor
Condition: New- Retail Box, Warranty: 1 year
by Abit
1 review | Add Your Review

$105.55

109498 - IL9 PRO
Abit IL9 Pro Socket LGA775 Motherboard, Intel 945P Chipset, 1066 mHz FSB, DDR2 Dual-Channel DIMMs, 3 x PCI-E, 3 x PCI, On-board Audio and LAN. ATX Form Factor

Abit IL9 Pro Socket LGA775 Motherboard, Specifications, price and availability 54110715

Abit IL9 Pro Motherboard



Abit IL9 Pro Socket LGA775 Motherboard, Intel 945P Chipset, 1066 MHz FSB, 4 x 240-pin DDR2 Dual-Channel

  • Industrial Standard:
    • 100% lead-free process and RoHS compliant
  • Storage:
    • 1 x Ultra DMA 100/ 66/ 33 IDE connector
    • 4 x SATA 3Gb/s connector
  • Rear Panel I/O Ports:
    • 1 x PS/2 Keyboard, 1 x PS/2 Mouse
    • 1 x Serial Port
    • 1 x Printer port
    • 4 x USB 2.0
    • 1 x RJ-45 LAN connector
    • 7.1 CH Audio connector ( Line-in/ Surround, Line-out, MIC-in, Rear Surround, Center/ Woofer)
    • S/PDIF Out
  • Internal I/O Interface:
    • 1 x Floppy Port supports up to 2.88 MB
    • 2 x USB header (support 4 ports)
    • 1 x FP-Audio, 1 x CD-In

Motherboard Specifications

  • Model:
    • IL9 Pro
  • Processor Support:
    • LGA775 Socket for Intel ® Core 2 Duo/ Pentium ® D/ Pentium ® 4/ Celeron ® D Processors
    • Supports Intel ® Hyper-Threading Technology
  • Chipset:
    • Intel ® 945P
  • FSB:
    • 1066 MHz
  • Memory:
    • 4 x 240-pin DIMM sockets
    • Supports DDR2 667 memory up to 4GB
    • Supports Dual Channel DDR2 667 Un-buffered Non-ECC memory
  • Expansion Slots:
    • 1 x PCI-E X16
    • 1 x PCI-E X16 (PCI-E X4 bandwith)
    • 1 x PCI-E X1
    • 3 x PCI
  • On-Board Audio:
    • On board HD 7.1 CH Audio CODEC
  • On-Board LAN:
    • On board 10/100/1000M Gigabit LAN
  • Form Factor:
    • ATX form factor
    • 305 x 244mm
    • 12" x 9.65"
    • Blue PCB
