Abit SG-80DC

109500 - Abit SG-80DC Motherboard, SIS 661FX Chipset, Socket LGA775, 800/ 533 MHz FSB, DDR 400, AGP 8X, On-board audio and LAN, 3 x PCI, SATA-I, Micro ATX Form Factor
Condition: New- Retail Box, Warranty: 1 year
by Abit
1 review | Add Your Review

$65.75

109500 - SG-80DC
Abit SG-80DC Motherboard, SIS 661FX Chipset, Socket LGA775, 800/ 533 MHz FSB, DDR 400, AGP 8X, On-board audio and LAN, 3 x PCI, SATA-I, Micro ATX Form Factor

Abit SG-80DC Socket LGA775 Motherboard, Specifications, price and availability 54110716

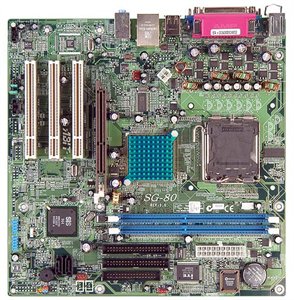

Abit SG-80DC Motherboard



Abit SG-80DC Motherboard, SIS 661FX/ 964 Based Micro ATX with support for Socket LGA775

  • Form Factor:
    • Micro ATX form factor
    • 244 x 244mm
    • 9.61" x 9.61"
  • Industrial Standard:
    • 100% lead-free process and RoHS compliancy
  • Rear Panel I/O Ports:
    • 1 x PS/2 Keyboard
    • 1 x PS/2 Mouse
    • 1 x Serial Port
    • 1 x Parallel Port
    • 1 x VGA connector
    • 4 x USB 2.0
    • 1 x RJ-45 LAN connector
    • Audio connector (Line-out, Line-in, MIC-in)
  • Internal I/O Interface:
    • 1 x Floppy Port supports up to 2.88 MB
    • 2 x USB header (support 4 ports)
    • 1 x FP-Audio, 1 x CD-In

Motherboard Specifications

  • Model:
    • SG-80DC
  • Processor Support:
    • LGA775 Socket for Intel ® Pentium D/Pentium 4/Celeron D Processors
    • Compatible with Intel P4-05A processors
    • Supports Intel ® Hyper-Threading / XD-bit / EM64T Technology
  • Chipset:
    • SIS 661FX/ 964
  • FSB:
    • 800MHz FSB
  • Memory:
    • 2 X 184-pin DIMM sockets support max. memory capacity 2GB
    • Supports DDR 400 Un-buffered Non-ECC memory
  • Expansion Slots:
    • 1 x AGP 8X
    • 3 x PCI
  • On-Board Audio:
    • On board 5.1 CH Audio CODEC
  • On-Board Video:
    • Integrated SIS Mirage Graphics GPU high performance 256-bit 3D engine and 2D Accelerator
  • On-Board LAN:
    • On board 10/100M PHY
  • Storage:
    • 2 x Ultra DMA 133/100/66/33 IDE connector
    • 2 x SATA 1.5Gb/s connector
    • Supports SATA RAID 0/1
