- Special Features:
- 6 x SATA 3Gb/s offer by Intel ® ICH8R support Intel ® Matrix
Storage Tech(AHCI & RAID 0/1/5 /10)
- 2 x SATA 3Gb/s offer by JMicron ® JMB363 support up to
0,1,0+1,JBOD RAID function
- 1 x SATA 3Gb/s offer by Silicon Image 3132 to 0,1,0+1,JBOD RAID
function
- 1 x SATA 3Gb/s offer by Silicon Image 3132
- Hardware Monitoring:
- Monitor temperatures, voltages and fan settings in real time and
with zero CPU usage.
- Manageability:
- By enabling AutoDrive, you can automatically apply different
overclocking settings for different applications.
- The original jumperless motherboard design allows for CPU
setting changes completely through the BIOS.
- Industrial Standard:
- 100% lead-free process and RoHS compliant
- Abit Engineered:
- abit SoftMenu Technology
- abit μGuru Technology
- abit Silent OTES Technology
- Form Factor:
- ATX form factor
- 305 x 245mm
- PCB Color: Orange
|

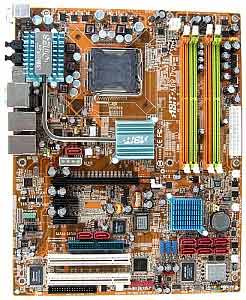

Motherboard Specifications
- Processor Support:
- Support Intel Core 2 Duo Pentium ® & Pentium ® D processors
- Socket 775
- Chipset:
- Intel ® P965 / ICH8R Chipset
- Memory:
- 4 X 240-pin DIMM sockets
- Max. memory capacity 8GB
- Supports Dual channel DDR2 800/667/533 Un-buffered Non-ECC
memory
- Expansion Slots:
- 1 x PCI-E X16
- 2 x PCI-E X1
- 2 x PCI
- On-Board Audio:
- On board 7.1 CH HD Audio CODEC
- Supports auto jack sensing and optical S/PDIF Out
- On-Board LAN:
- On board Dual PCI-E Gigabit LAN controller supports 10/100/
1000M Ethernet
- Storage:
- 1 x Ultra DMA 100/66/33 IDE connector
- 9 x SATA 3Gb/s connector
- Rear Panel I/O Ports:
- 1 x PS/2 Keyboard, 1 x PS/2 Mouse
- abit Silent OTES
- 1 x S/P DIF In, 1 x S/P DIF Out
- 1 x eSATA
- 7.1 CH Audio connector (Front, Line-in, MIC-in,
Center/Subwoofer, Surround, Rear Surround)
- 4 x USB 2.0
- 2 x RJ-45 LAN connector
- Internal I/O Interface:
- 1 x Floppy Port supports up to 2.88 MB
- 3 x USB header (support 6 ports)
- 1 x FP-Audio
- 1 x CD-In
|
