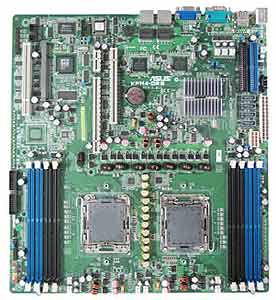

Asus KFN4-DRE

109550 - Asus KFN4-DRE Dual Socket 1207 motherboard for AMD Opteron. 8 DDR2 Dual Channel DIMMs, 1 PCI, 3 PCI-X, 1 PCI-E, On-Board Video and Dual Gigabit LAN. ATX.
Condition: New- Retail Box, Warranty: 1 year
by Asus
1 review | Add Your Review

$422.26

109550 - KFN4-DRE
Asus KFN4-DRE Dual Socket 1207 motherboard for AMD Opteron. 8 DDR2 Dual Channel DIMMs, 1 PCI, 3 PCI-X, 1 PCI-E, On-Board Video and Dual Gigabit LAN. ATX.

Asus KFN4-DRE Motherboard. Specifications, price and availability 54240002. Dual Socket 1207 motherboard for AMD Opteron

Asus KFN4-DRE Motherboard

Dual Socket 1207 motherboard for AMD Opteron processors

Asus KFN4-DRE Motherboard, Socket 1207, Dual AMD Opteron

  • Rear Panel I/O Ports:
    • External Serial Port: 1
    • External USB Port: 2
    • VGA Port: 1
    • RJ-45: 2
    • PS/2 KB/Mouse: 1
  • Internal I/O Interface:
    • Floppy Connector: 1
    • PSU Connector: 24-pin SSI + 4-pin ATX 12V
    • Management Connector: SODIMM socket for ASMB3-SOL
    • USB Connectors: 1 (support 2 USB ports)
    • Fan Header: 10 x 4Pin
      SMBus: 2
    • Chassis Intruder: 1
    • Front LAN LED: 2
    • Serial Port Header: 1
  • Special Features:
    • Smart Fan
    • Rack Ready (Rack and Pedestal dual use)
    • ASWM2.0
  • Hardware Monitoring:
    • CPU Temperature
    • FAN RPM
  • Manageability:
    • Software: ASWM2.0
    • Out of Band Remote Management: Optional (ASMB3-SOL)

Motherboard Specifications

  • Model:
    • Asus KFN4-DRE
  • Processor Support:
    • 2 x socket 1207
    • AMD Opteron for Socket F (1207) (up to 3.0GHz)
      dual core ready
  • Chipset:
    • nVIDIA nForce Pro 2200
  • Memory:
    • Total Slots: 8
    • Capacity: Maximum up to 32GB
    • Memory Type: Dual Channel ECC Reg. DDR2 667
    • Memory Size: 512 MB, 1 GB, 2GB
  • Expansion Slots:
    • Slot 1: 1 x 32bit / 33MHz PCI
    • Slot 5: 1 x HTX
    • Slot 6: 1 x PCI-E x 16
    • Additional Slot 1: 1 x SODIMM socket for ASMB3-SOL
  • On-Board Video:
    • ATI ® ES1000 PCI Display Controller/ 32MB
  • On-Board LAN:
    • 2 x Broadcom ® BCM5721 PCI-E Gb LAN
  • Storage:
    • 2 x Dual Channel Bus Master IDE support UltraATA 100 / 133
    • 4 x SATA Ports support RAID 0, 1, 0+1, 5, JBOD (Windows)
  • Form Factor:
    • ATX 12" x 13"
